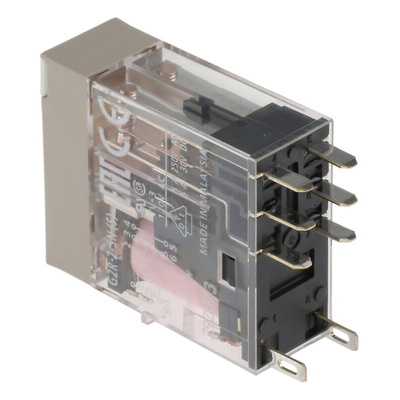

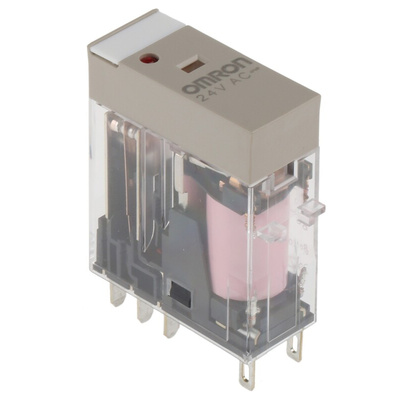

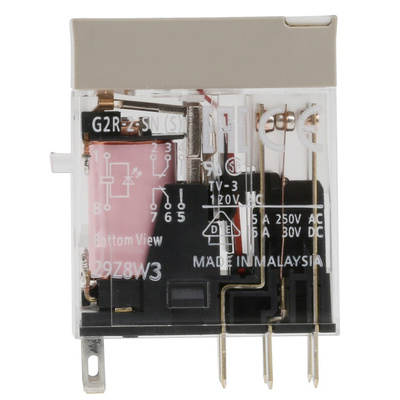

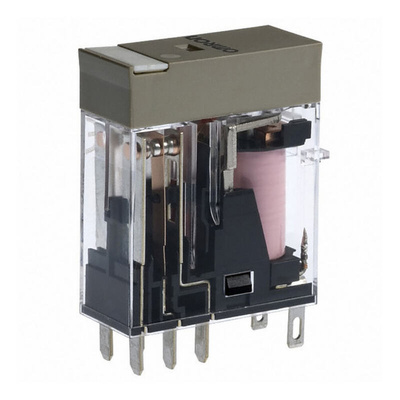

G2R-2-SN AC24(S), Omron Plug In Power Relay, 24V ac Coil, 5A Switching Current, DPDT, Реле

G2RS Series Non-Latching Relay

Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.

Features & Benefits

Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Product Application Information

Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances

Note

Can be used as a replacement for earlier version of G2R-SN series, check height clearance.

Approvals

UL, CSA, VDE

OMRON Power Relay, Transparent Casing, 43.5mA Maximum Input Current - G2R Series - G2R-2-SN AC24(S)

Make reliable connections in your setup with this power relay from OMRON. Its silver alloy contacts efficiently carry electricity between machines, keeping essential processes ticking along reliably. By responding to signals in 15ms, it kickstarts your kit in a snap. Installing this widely compatible device into a system is a breeze as it simply clicks into a compatible socket (such as 111-3067). Thanks to the unit's diagnostic function, you can trust it to disconnect when it detects a fault, which cuts the risk of hardware damage. Relays like this are used in motor starters and the packaging industry.

Features & Benefits

• Convenient LED and mechanical indicators to show switch status in powered and unpowered states
• Switches loads up to 5A, taking on everyday energy distribution tasks
• Lasts for 1 million electrical cycles, so it delivers long-lasting reliability
• Top-mounted labelling space for handy terminal identification
• Consumes just 0.9VA of power to support energy efficiency

Applications

• Beverage production
• HVAC systems
• Plastics processing

Is this power relay suitable for controlling my application's security door?

Yes, this device handles up to 1800 electrical operations an hour, so it'll reliably open and shut frequently activated security doors without a hitch.

Approvals

VDE; TUV; UL; CSA; SEMKO; IMQ

CSA LR31928

UL E41643

VDE 40015012

G2R Datasheet

Brochure - Industrial Relays
