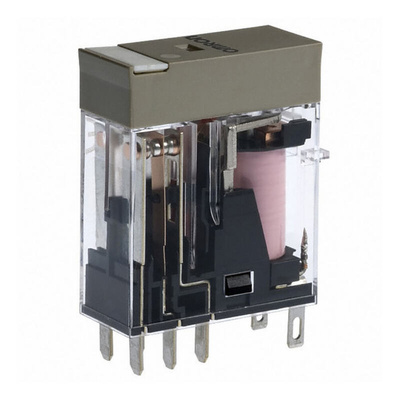

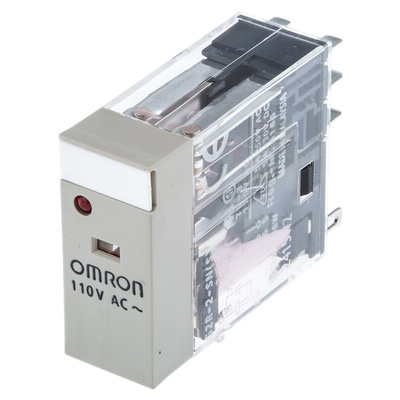

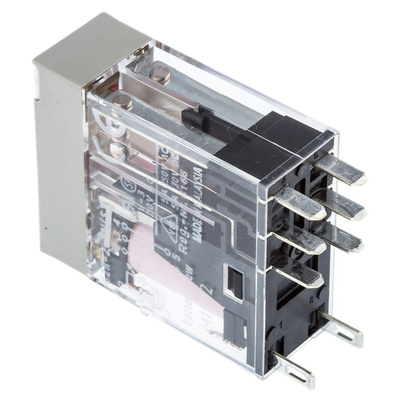

G2R-2-SN AC110(S), Omron Plug In Power Relay, 110V ac Coil, 5A Switching Current, DPDT, Реле

G2RS Series Non-Latching Relay

Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.

Features & Benefits

Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Product Application Information

Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances

Note

Can be used as a replacement for earlier version of G2R-SN series, check height clearance.

Approvals

UL, CSA, VDE

OMRON Power Relay, 5556Ω Coil Resistance, 1.25kVA AC Maximum Switching Power - G2R-2 Series - G2R-2-SN AC110(S)

Keep your automated operation ticking over with this power relay from OMRON. It has a DPDT setup, so is suitable for simultaneously switching two circuits that need to work in unison. Thanks to its 110V AC coil voltage, this product is a handy all-rounder that's useful for high-power automation tasks like lighting, heating and motor functions. The plug-in installation method means it's easy to set up by hand and there's no need for specialist equipment.

Features & Benefits

• 0.53W power consumption makes it energy-efficient
• 15ms maximum operating time means you get a rapid response
• Compact dimensions of 29 (L) x 41.7 (H) x 13mm (D) mean it saves on space in busy systems
• Delivers reliable performance in temperatures between -40°C and +70°C

Applications

• Industrial power distribution
• Pharmaceutical manufacturing
• Aerospace engineering

What's the mechanical lifespan of this relay?

This relay delivers 10 million mechanical operations, so it's a dependable option when you need long-term performance.

How much does the assembly weigh?

This unit only weighs 20g, so it doesn't add unnecessary strain to your mounting surface.

Approvals

VDE; TUV; UL; CSA; SEMKO; IMQ

CSA LR31928

UL E41643

VDE 40015012
