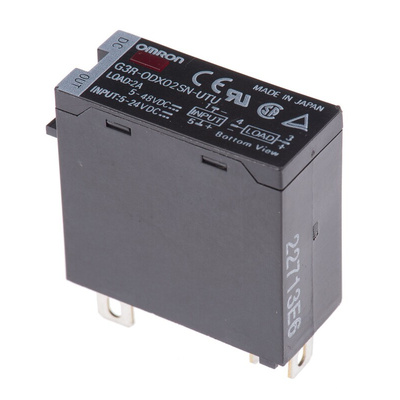

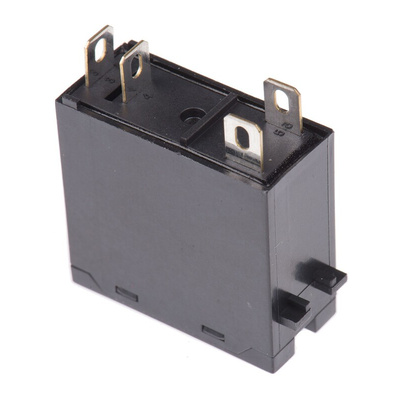

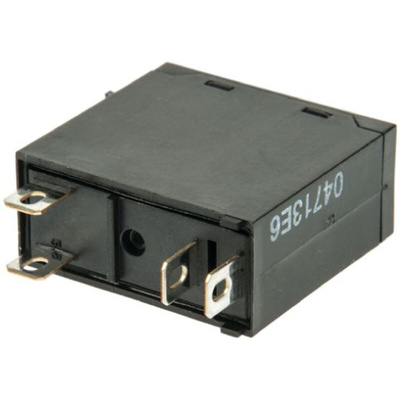

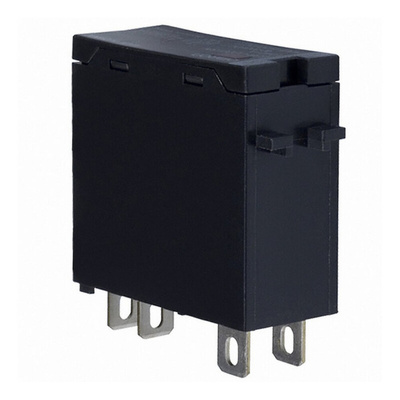

G3R-ODX02SN DC5-24, Omron G3R-O Series Solid State Relay, 2 A Load, Plug In, 60 V dc Load, 32 V Control, Реле

G3R SSR

Operation indicating LED
Zero-cross turn-on with DC/AC type providing noise free switching
16mm mounting interval when used with associated DIN rail socket stk no. 353-944
Isolation voltage 4kV
Dimensions (WxHxD) 13x29x29mm
Operating temperature range -30 to +80°C

Approvals

UL, CSA

OMRON Solid State Relay, Plug-In Connector, 1 Pole - G3R-O Series - G3R-ODX02SN DC5-24

To switch your appliance's power connection without a hitch, pick this OMRON solid state relay. Thanks to its semiconductors, the device switches in a flash to deliver speedy robotics and conveyor belt management. It's activated by optical signals rather than the movement of mechanical parts, so you get long-term control without wear and tear. Set-up is a cinch as this component plugs directly into a socket (815-6744), meaning you're spared the hassle of wiring. The built-in photocoupler isolates the relay's circuits to cut the risk of hardware damage caused by voltage surges.

Features & Benefits

• Built-in mechanical indicator to clearly signal circuit status
• Maximum input current of 8mA, minimising electrical consumption
• Control voltage range between 5 and 48V DC for wide power supply compatibility
• Measures just 13 (W) x 29 (H) x 28mm (D), so slots into busy setups
• Insulating plastic casing for safe handling

Applications

• Railway signalling
• Measuring and sensing equipment
• Plastic processing

Can I use this relay in extreme temperatures?

Yes, this unit performs in temperatures between -30°C and +80°C, so it's a safe bet for controlling kit in demanding industrial settings.

Approvals

UL; CSA
