F0301SUS201ELECTRODE, Omron F03 Series Electrode Electrode, Chassis Mount, Stainless Steel Body

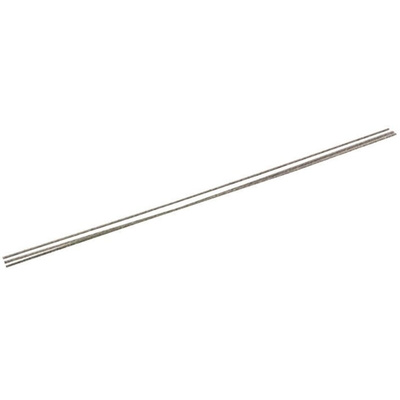

Stainless Steel Electrode

1m long x 6mm diameter, each end with a 20mm M6 thread
Suitable for use with a range of electrode holders

OMRON Electrode, 1m (length) x 6mm (Diameter), M6 Threaded - F0301SUS201ELECTRODE

When you need to stay on top of water levels, try this handy electrode from OMRON. It plugs easily into your level control relay so you can monitor conductive liquids such as purified city water and wastewater. A stainless steel body means it reliably holds up under wet conditions without corroding, so you can be sure of its long service life. As there's a 20mm M6 thread at each end, it's a cinch to achieve a secure fit into your relay panel.

Features & Benefits

• Chassis-mounted with a plug-in design for easy installation directly inside your industrial unit
• Versatile double-threaded design fits most standard electrode holders
• Slim profile with a 6mm diameter, for flexibility inside compact systems

Applications

• Water treatment plants
• Power generators
• Sewage processing

What's the maximum operating temperature of this device?

The electrode performs reliably at temperatures up to +70°C and right down to -10°C, making it suitable for challenging industrial applications.

What depths does this electrode reach down to?

This electrode has a long length of 1m. For applications where longer electrodes are required, simply fix it to another probe using connection and lock nuts.
