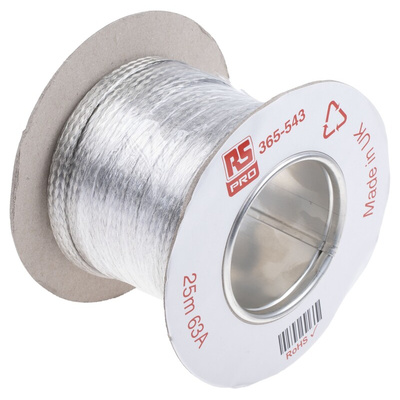

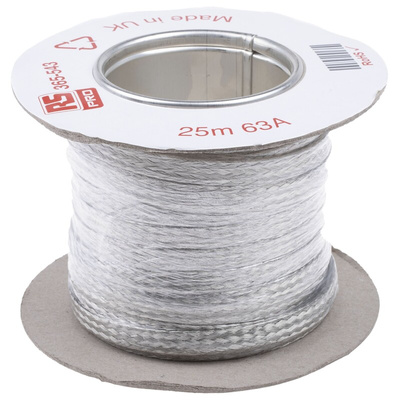

RS PRO Braided Wire 63 A, 10 x 2 mm, 25m BS4109, Плетеный провод

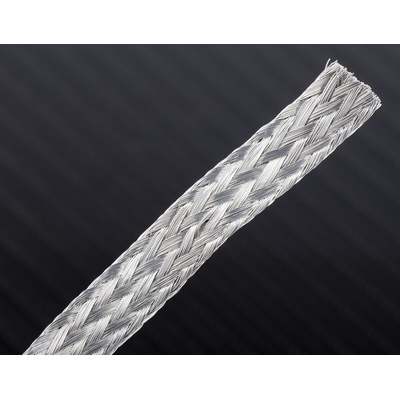

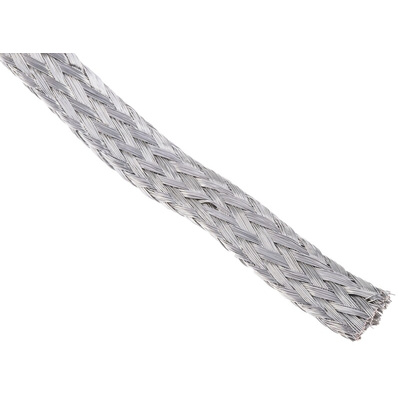

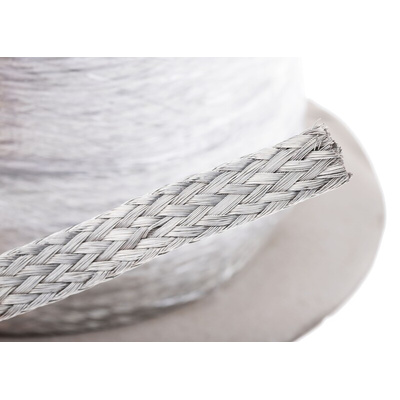

RS PRO Flat Braided Copper Wire

Brought to you by RS PRO, a range of braided wire suitable for applications which require a strong and flexible braided connection. Typically used within automotive, aerospace and railways industries. Supplied as a flat tinned copper braid, and available in various lengths, this copper wire is an excellent choice in many situations. All models are highly reliable and excellent quality.

Features and Benefits

• Fully annealed tinned copper wire
• For use in normal ambient conditions
• Meets BS 4109, British specification for copper for electrical purposes
• 10A version - nom. size 1·9 ´ 0·6mm. Basic construction 16´4/0·1 mm (approx. 0·5 mm²)
• 30A version - nom. size 5 ´ 0·7mm. Basic construction 16´6/0·15 mm (approx. 2 mm²)
• 63A version - nom. size 10 ´ 2 mm. Basic construction 24´10/0·2 mm (approx. 7 mm²)
• 90A version - nom. size 12 ´ 2·3 mm. Basic construction 24´12/0·2 mm (approx. 9·3 mm²)

What is a braided wire?

Known for its durability, copper braid is used all over the globe within cables for the strongest possible electric connection. Primarily the use of a braided cable is an earthing strap for both safety and the elimination of static. Two of the biggest issues in electronics. If a sturdy and flexible braided wire is needed, then these RS PRO versions will guarantee performance.

Benefits of Copper

Copper is the obvious choice of material for cables and wires due to the famously conductive properties it has. Speaker cables, circuit boards and various types of advanced wiring all use copper wire as their connection. With the added excellent flexibility provided by a braided cable, all applications can expect a smooth and consistent performance for the connected electronics.

Standards

BS 4109

RS PRO Flat Braided Copper Wire

There are two main reasons as to why Braided Wire is getting build into a Cable. Firstly, to protect the cable from EMI (electromagnetic interference) and secondly to lifespan and mechanical strength of a Cable.

We are proudly introducing our won branded RS PRO Flat Braided Copper Wire suitable for applications where the strong and flexible braided connection is essential. The 25 m length of Copper Wire supplies as a flat tinned copper braided and it has its place in automotive, aerospace or railway industries sector.
The conductor material is copper, meaning smooth and consistent performance for the connected electronics. Copper Braided Cable is a perfect fit for earthing strap both safety and the elimination of static, eliminating one of the most significant issues in electronics.

If a sturdy and flexible Braided Wire is needed, then our RS PRO version will guarantee outstanding performance.

Features and Benefits

• High flexibility braid for high vibration areas


• The Wire supplies with metric terminals at each end


• Fully annealed tinned copper wire


• For use in normal ambient conditions


• Meets BS 4109, British specification for copper for electrical purposes


• Reel of 25 m long practically always in stock


• 63A version - nom. size 10 ' 2 mm. Basic construction 24'10/0·2 mm (approx. 7 mm²)

Applications

The braided earth wire has its place in the following: areas:

• Speakers Cables


• Circuit Boards


• Construction


• Automotive


• Aerospace


• Rail Industry


• Essential for grounding in audio, video and computer systems

Frequently asked questions

Why is braided Wire so important?

We are all surrounded by EMI from smartphones to the radio, and therefore without adequate shielding, electromagnetic interference would interrupt signal strength, meaning data loss or even electrical failure. The braided Wire is on guard to protect Cable signal strength and reliability.

Why RS PRO?

RS PRO is our family brand to go-to and brings you a wide range for high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we are confident of their exceptional quality, which means you can be convinced too.
