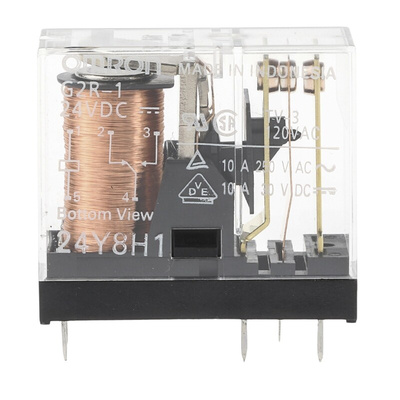

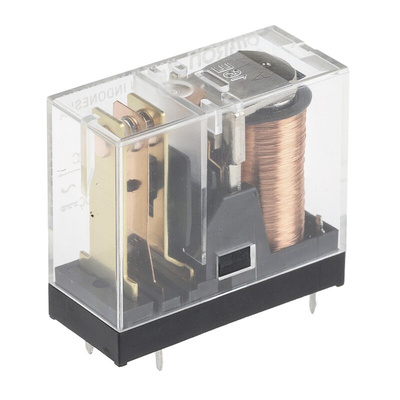

G2R-1 DC24, Omron PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPDT, Реле

G2R Series

General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm

Approvals

UL508; CSA22.2; EN 61810-1; SEV; SEMKO

G2R-1 24DC General Purpose Power Non-Latching Relay.

Omron G2R-1 24DC Non-latching relay is a general purpose power relay having an excellent safety design and dielectric strength 5000 V between the coil and contacts. This general purpose relay also provides PCB terminals, single pole, surge resistance of 10000 V plus is RoHS compliant.

Features and Benefits G2R-1 24DC Standard Capacity Non-Latching Relay.

•\tPCB Terminal.
•\tStandard capacity relay
•\tSingle-side stable.
•\tFlux protection.
•\tSPDT AC/DC Contacts.
•\t1 Poles NO/NC (normally open/normally closed).

Relay Coil Ratings.

•\tRated voltage 24 V dc.
•\tRated current 21.8 mA.
•\tCoil resistance 1100 Ω.
•\tMust operate voltage 70% max.
•\tMust release voltage 15% minimum.
•\tMaximum voltage 170% at 23°C.
•\tPower consumption 0.53 VA approx.

Standard Non-Latching Relay.

ontact resistance 30 mΩ max.
•\tOperate time 15 ms max.
•\tDielectric strength 5000 V ac, 50/60 Hz for 1 min (between coil and contacts).
•\tDielectric strength 3000 V ac, 50/60 Hz for 1 min (between contacts of different polarity).
•\tDielectric strength 1000 V ac, 50/60 Hz for 1 min (between contacts of the same polarity).
•\tVibration resistance – destruction and malfunction 10 to 55 to 10 Hz (0.75 mm single amplitude) (1.5 mm double amplitude).
•\tShock resistance – destruction 1000 m/s².
•\tShock resistance – malfunction 200 m/s² (energised) 100 m/s² (not energised).
•\tOperating temperature -40°C to 70°C (no icing).
•\tWeight 17 g (approx).

Connecting Sockets 1-Pole.

•\tModel P2R-05P, Back mounting socket, stock number 353950.
•\tModel P2R-057P, Back mounting socket, stock number 2604446.
•\tModel P2RF-05-E, Track / surface mounted socket, stock number 353944.
•\tModel P2RF-05, Track / surface mounted socket, stock number 8276781.

Relay Mounting Track.

•\tModel PFP-50N, (for track connecting socket), 50 cm x 7.3mm, stock number 8278400.
•\tPFP-100N, (for track connecting socket), 1 m x 7.3 mm, stock number 8278403.
•\tPFP-100N2, (for track connecting socket), 1 m x 16 mm, stock number 8278406.

End Plate.

•\tModel PFP-M, stock number 8278419.

Spacer Plate.

•\tModel PFP-S, stock number 8278412.

CSA LR31928

VDE 40015012

Mount Non-Latching Relay
