G2R-1-E DC24, Omron PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, SPDT, Реле

G2R Series

General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm

Approvals

UL508; CSA22.2; EN 61810-1; SEV; SEMKO

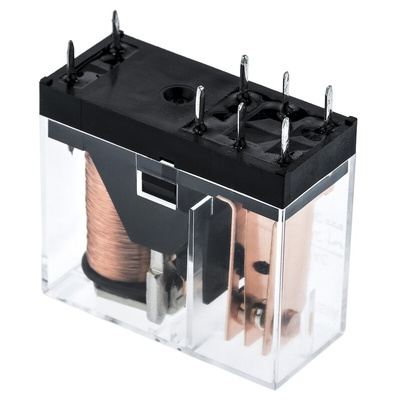

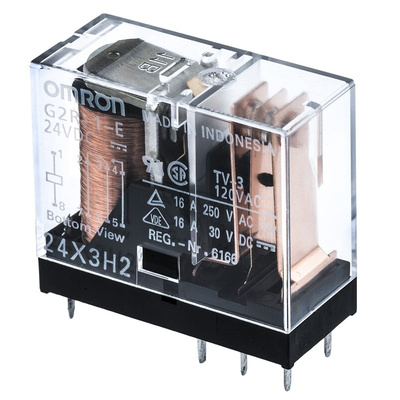

G2R-1-E 24DC High Capacity PCB Non-Latching Power Relay.

The Omron G2R-1-E 24DC High capacity power relay is a single pole PCB terminal relay with an excellent safety design and dielectric strength 5000 V between the coil and contacts. This general purpose relay also provides a surge resistance of 10000 V plus is RoHS compliant.

Features and Benefits G2R-1-E 24DC High Capacity Non-Latching Relay.

•\tPCB Terminal.
•\tHigh Capacity relay.
•\tFlux protection.
•\tSPDT AC/DC Contacts.
•\t1 Pole NO/NC (normally open/normally closed).

Coil Ratings.

•\tRated voltage 24 V dc.
•\tRated current 21.8 mA.
•\tCoil resistance 1100 Ω.
•\tMust operate voltage 70% max.
•\tMust release voltage 15% minimum.
•\tMaximum voltage 170% at 23°C.

High Capacity Relay.

•\tContact resistance 30 mΩ max.
•\tOperate time 15 ms max.
•\tRelease time DC – 5 ms max.
•\tVibration resistance – destruction 10 to 55 to 10 Hz (0.75 mm single amplitude) (1.5 mm double amplitude).
•\tVibration resistance – malfunction 10 to 55 to 10 Hz (0.75 mm single amplitude) (1.5 mm double amplitude).
•\tShock resistance – destruction 1000 m/s².
•\tShock resistance – malfunction 200 m/s² (energised) 100 m/s² (not energised).
•\tOperating temperature -40°C to 70°C (no icing).
•\tWeight 17 g (approx).

CSA LR31928

UL E41643

VDE 40015012
