G2R-2 DC12, Omron PCB Mount Power Relay, 12V dc Coil, 5A Switching Current, DPDT, Реле

G2R Series

General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm

Approvals

UL508; CSA22.2; EN 61810-1; SEV; SEMKO

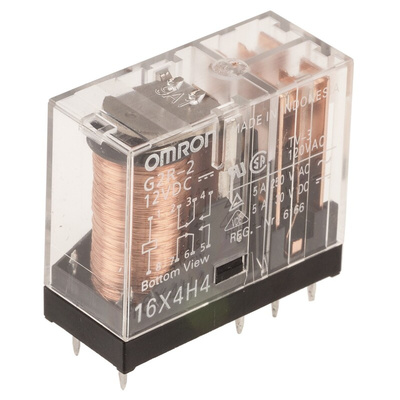

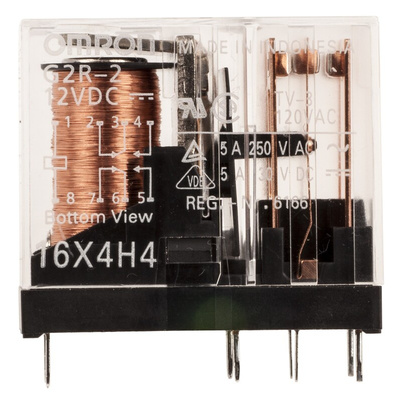

G2R-2 12DC Standard Capacity PCB Non-Latching Power Relay.

The Omron G2R-2 12DC Standard capacity power relay is a single pole PCB terminal relay with an excellent safety design and dielectric strength 5000 V between the coil and contacts. This general purpose relay also provides a surge resistance of 10000 V plus is RoHS compliant.

Features and Benefits G2R-2 12DC Standard Capacity Non-Latching Relay.

•\tPCB Terminal.
•\tStandard capacity relay.
•\tFlux protection.
•\tDPDT AC/DC Contacts.
•\t2 Poles NO/NC (normally open/normally closed).

Coil Ratings.

•\tRated voltage 12 V dc.
•\tRated current 43.6 mA.
•\tCoil resistance 275 Ω.
•\tMust operate voltage 70% max.
•\tMust release voltage 15% minimum.
•\tMaximum voltage 170% at 23°C.

Standard Relay.

•\tContact resistance 50 mΩ max.
•\tOperate time 15 ms max.
•\tRelease time DC – 5 ms max.
•\tDielectric strength 3000 V ac, 50/60 Hz for 1 min (between contacts of different polarity).
•\tDielectric strength 1000 V ac, 50/60 Hz for 1 min (between contacts of the same polarity).
•\tVibration resistance – destruction 10 to 55 to 10 Hz (0.75 mm single amplitude) (1.5 mm double amplitude).
•\tVibration resistance – malfunction 10 to 55 to 10 Hz (0.75 mm single amplitude) (1.5 mm double amplitude).
•\tShock resistance – destruction 1000 m/s².
•\tShock resistance – malfunction 200 m/s² (energised) 100 m/s² (not energised).
•\tOperating temperature -40°C to 70°C (no icing).
•\tWeight 17 g (approx).

CSA LR31928

UL E41643

VDE 40015012
