G5V-1 DC5, Omron PCB Mount Signal Relay, 5V dc Coil, 2A Switching Current, SPDT, Реле

G5V-1 Series

Fully sealed construction
High sensitivity SPDT, 150mW nominal coil power
Ultra-miniature, 12.5x7.5x10 mm (LxWxH)

Approvals

UL, CSA conforms to FCC part 68

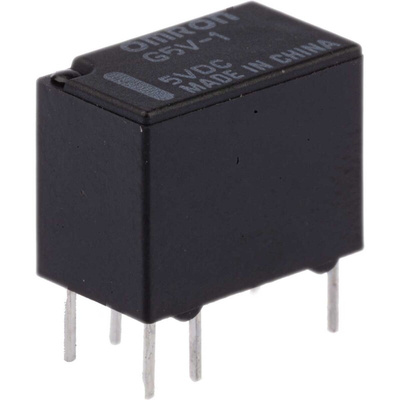

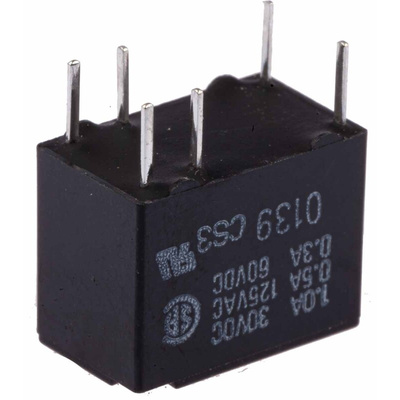

G5V-1 5DC Ultra-Miniature Low Signal Non-Latching Relay.

The Omron G5V-1 5DC is a small and highly sensitive non-latching SPDT relay ideal for signal circuits. A completely sealed package providing excellent resistance to eternal environments. PCB terminals, switching power from 1 mA to 1 A plus a highly sensitive 150 mW nominal coil power consumption all add to this miniature relay.

Non-Latching Relay Features and Benefits.

•\tStandard relay.
•\tMiniature size.
•\tCompletely sealed.
•\tSPDT contacts.
•\tPCB Terminal.
•\tSingle crossbar (Au-alloy+Ag).

Coil Rating.

•\t5 V dc.
•\tRated current 30 mA.
•\tCoil resistance 167 Ω.
•\tInductance Armature OFF 0.15 H, Armature ON 0.29 H
•\tMust operate voltage 80% max (of rated voltage).
•\tMust release voltage 10% min (of rated voltage).
•\tMax voltage 200% of rated voltage (at 50°C), 160% (at 70°C).
•\tApprox power consumption 150 mW.

Contact Rating.

•\tRated load 0.5 A (at125 V ac), 1 A (at24 V dc).
•\tContact material Ag, Au-clad.
•\tRated carry current 2 A.
•\tSwitching current max 1 A.
•\tSwitching voltage max 125 V ac, 60 V dc.
•\tSwitching power max 62.5 VA, 30 W.
•\tPermissible load min 1 mA at 5 V dc.

Additional Features of the G5V-1 5DC Miniature Non-Latching Relay.

•\tContact resistance 100 mΩ.
•\tDielectric strength 1000 V ac, 50/60 Hz (1 min between coil and contacts).
•\tDielectric strength 400 V ac, 50/60 Hz (1 min between contacts of the same polarity).
•\tVibration resistance – destruction and malfunction 10 to 55 Hz, 3.3 mm.
•\tShock resistance – destruction 1000 m/s².
•\tShock resistance – malfunction 100 m/s².
•\tOperating temperature – ambient -40°C to 70°C (no icing).
•\tApprox weight 2 g.

Applications Include.

•\tTelecommunication.
•\tAudio-visual.
•\tSecurity equipment.
•\tBuilding automation.

UL E41515

CSA 024825

UL E41643

G5V-1 Datasheet
