G5LE-1 DC5, Omron PCB Mount Power Relay, 5V dc Coil, 10A Switching Current, SPDT, Реле

G5LE Series

Subminiature 'sugar cube' format
Ideal for control circuit applications
High current switching capacity
Withstands impulse of up to 4500V
Dimensions; L22.5xW16.5xH19 mm

Approvals

UL, CSA, VDE

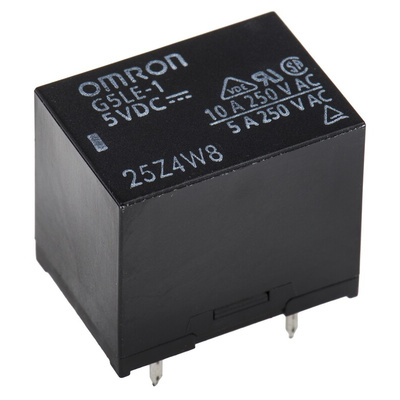

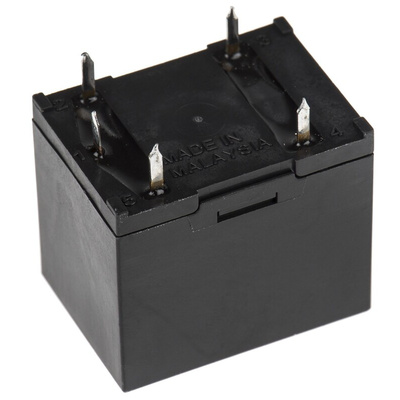

G5LE-1 5DC Cubic Single Pole PCP Power Non-Latching Relay.

The Omron Power Non-Latching relay can be used in a number of applications including home equipment, vending machines and OA equipment. The miniature relay is often referred to as the “ice cube” relay due to the relays size and shape. Pre-soldered terminals, high switching power up to 10 A, PCB terminals and flux protection are among many of the included benefits of this relay.

Features and Benefits.

•\tCubic “Ice Cube” relay.
•\tUniversal terminal footprint.
•\tSPDT (1c) contact.
•\tFlux protection
•\t1-Pole.
•\tRated coil voltage 5 V dc.

Relay Coil Ratings.

•\tRated current 79.4 mA.
•\tCoil resistance 63 Ω.
•\tMust operate voltage 75% max of rated voltage.
•\tMax voltage 130% of rated voltage at 85°C, 170% pf rated voltage at 23°C.
•\tApprox power consumption of 400 mW.

Contact Rating.

•\t10 A at 120 V ac, 8 A at 30 V dc.
•\tRated carry current 10 A.
•\tSwitching voltage max 250 V ac, 125 V dc (30 V dc when the standard UL/CSA is applied).
•\tSwitching current max AC is 10 A, DC is 8 A.
•\tSwitching power max 1200 VA, 240 W.
•\tPermissible load min is 100 mA at 5 V dc.

Relay additional features.

•\tContact resistance 100 mΩ max.
•\tDielectric strength 2000 V ac, 50/60 Hz (1 minute between coil and contacts), 750 V ac, 50/60 Hz (1 minute between contacts of the same polarity).
•\tVibration resistance destruction and malfunction 10 to 55 Hz, 1.5 mm double amplitude.
•\tShock resistance destruction 1000 m/s², malfunction 100 m/s².
•\tAmbient operating temperature -40°C to 85°C, no icing.
•\tRelay approx. weight 12 g.

G5L(E) PCB Relay Data Sheet

CSA LR34815-127

UL E41643
