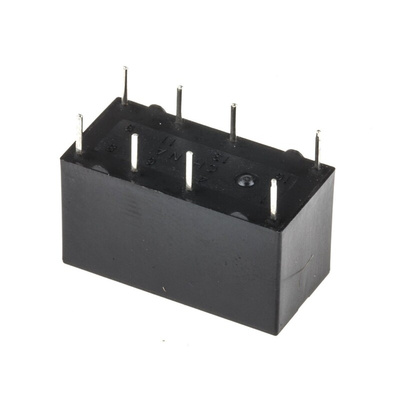

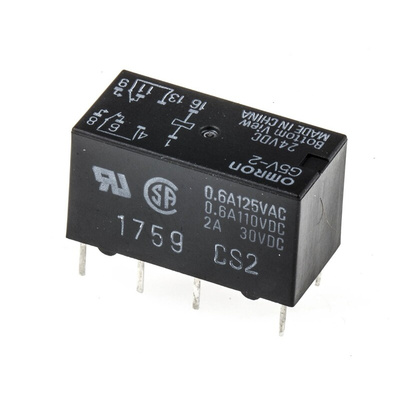

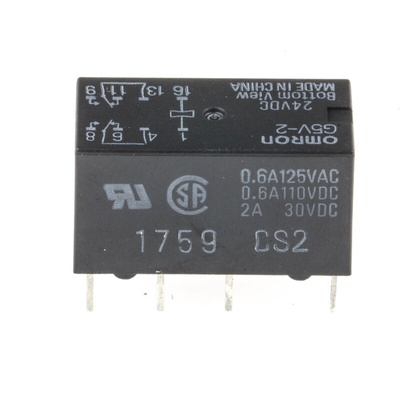

G5V-2 DC24, Omron PCB Mount Signal Relay, 24V dc Coil, 2A Switching Current, DPDT, Реле

G5V-2 Series

Fully sealed for immersion cleaning
Conforms to BT Type 47 requirements, BT specification 4597
Ideal for signal switching applications

Approvals

UL, CSA conforms to FCC part 68

G5V-2 24DC Ultra-Miniature Low Signal Non-Latching Relay.

The Omron G5V-2 24DC is a small non-latching SPDT relay ideal for signal circuits. A completely sealed package providing excellent resistance to eternal environments. PCB terminals, switching power from 10 μA to 2 A plus 2 poles and high dielectric strength all add to this miniature relay.

Non-Latching Relay Features and Benefits.

•\tStandard relay.
•\tGeneral purpose.
•\tMiniature size.
•\tCompletely sealed.
•\tDPDT contacts.
•\tPCB Terminal.
•\tBifurcated crossbar (Au-alloy+Ag).

Coil Rating.

•\t24 V dc.
•\tRated current 20.8 mA.
•\tCoil resistance 1152 Ω.
•\tInductance Armature OFF 1.98 H, Armature ON 2.63 H
•\tMust operate voltage 75% max (of rated voltage).
•\tMust release voltage 5% min (of rated voltage).
•\tMax voltage 120% of rated voltage (at 23°C).
•\tApprox power consumption 500 mW.

Contact Rating.

•\tRated load 0.5 A (at 125 V ac), 2 A (at 30 V dc).
•\tContact material Ag, Au-clad.
•\tRated carry current 2 A.
•\tSwitching current max 2 A.
•\tSwitching voltage max 125 V ac, 125 V dc.
•\tSwitching power max 62.5 VA, 60 W.
•\tPermissible load min 0.1 mA at 10 V dc.

Additional Features of the G5V-2 24DC Miniature Non-Latching Relay.

•\tContact resistance 50 mΩ.
•\tDielectric strength 1000 V ac, 50/60 Hz (1 min between coil and contacts).
•\tDielectric strength 750 V ac, 50/60 Hz (1 min between contacts of the same polarity).
•\tVibration resistance – destruction and malfunction 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
•\tShock resistance – destruction 1000 m/s².
•\tShock resistance – malfunction 200 m/s².
•\tOperating temperature – ambient -25°C to 65°C (no icing).
•\tApprox weight 5 g.

Applications Include.

•\tTelecommunication.
•\tSecurity equipment.

G5V-2 Low Signal Relay

UL E41515

CSA 024825
