Series 1 Contacts
A range of Series 1 Contacts for TE Connectivity connectors.
For 1·5 - 2·5mm² contacts use crimp tool stock no. 459-6252 and die set stock no. 452-6679
For all other contacts use tool stock no. 849-114 and die set stock no. 372-440
For a suitable Extraction Tool see stock number 162-5723

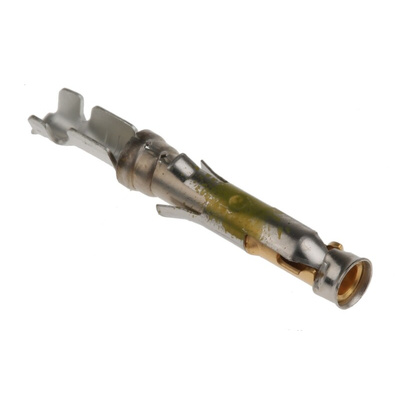

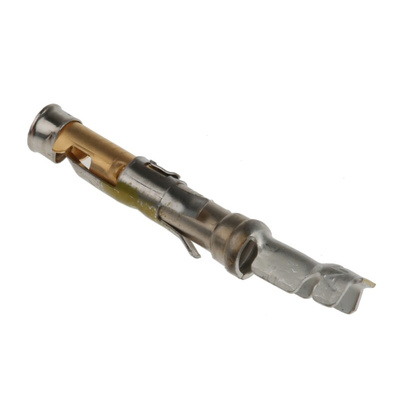

TE Connectivity Socket Contact
The TE Connectivity Type III+ series 1-pin female socket circular contact connector has a contact size of 16 and wire size ranging between 24AWG and 20AWG. This contact is made of brass and has gold over nickel contact plating. It can be used with CPC connectors, G series connectors and M series connectors.
Note:
The correct assembly procedures must be followed to ensure a full IP65 rating
Series 5 power connectors have 3-pole Powerband contacts
Series 6 power connectors have eight signal and 2 Powerband contacts
A wire entry seal is required in conjunction with the backshell
Includes the flange seal with the panel socket for full sealing capabilities
Features and Benefits
Current rating is 13A
Cable mount
Crimp termination
Operating temperature ranging between -40°C and 105°C
TE Connectivity CPC Contacts & Tooling
Contacts and Tooling for Series 1, 2 and 3 of the CPC range of connectors.
Техническая спецификация
CSA 7189408-1379 Instruction SheetProduct SpecificationApplication SpecificationLine DrawingDatasheet - 66105-4| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
