66101-4, TE Connectivity Female Crimp Circular Connector Contact, Contact Size 16, Wire Size 18 → 16 AWG, Контакты разъема

TE Connectivity Socket Contact

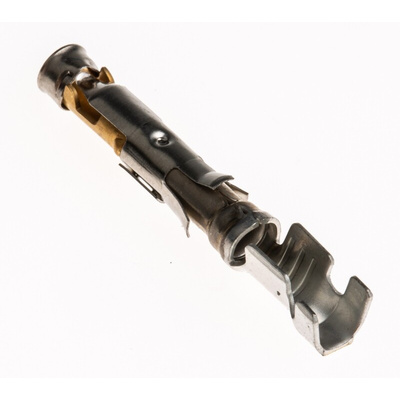

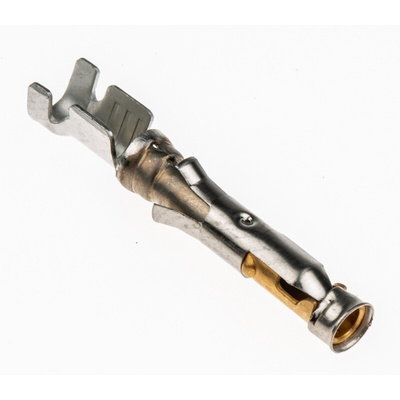

The TE Connectivity Type III+ series 1-pin female socket circular contact connector has a contact size of 16 and wire size ranging between 18AWG and 16AWG. This contact is made of brass and has gold over nickel contact plating. It can be used with CPC connectors, G series connectors and M series connectors.
Note:
The correct assembly procedures must be followed to ensure a full IP65 rating.
Series 5 power connectors have 3 pole Powerband contacts
Series 6 power connectors have 8 signal and 2 Powerband contacts
A wire entry seal is required in conjunction with the back shell
Include the flange seal with the panel socket for full sealing capabilities
Plugs, Sockets & Seals
Based on the successful and popular standard CPC series, these fully-sealed IP65 power connectors utilise precision-formed Powerband contacts that offer a rating of up to 45A for single contacts, in isolation. Manufactured from high strength, impact-resistant thermoplastic rated UL94V-0, these connectors offer an economical, environmentally sealed solution.

Features and Benefits

Current rating is 13A
Cable mount
Crimp termination

CSA 7189

408-1379 Instruction Sheet

Line Drawing

Instructions Sheet

Datasheet - 66101-4
