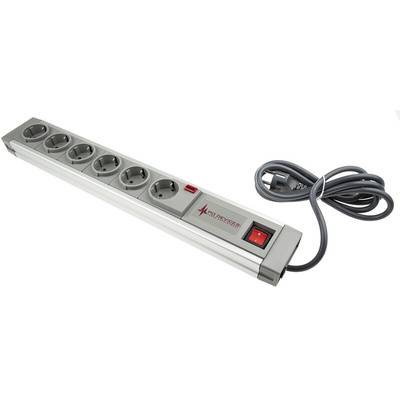

RS PRO 2m 6 Socket Type F - German Schuko Trailing Socket, 250 V ac

Schuko Trailing Socket, Surge & RFI Protected, Switched

This 6 way Schuko Surge & RFI protected socket strip is an ideal solution for home, office and industrial use.

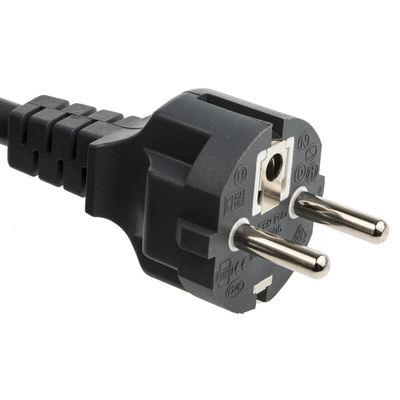

This trailing socket features a 2 metre lead fitted with a CEE7/7 Schuko Type F plug feeding six CEE7/4 Schuko Type F sockets in an aluminium case for high impact resistance and long life.

This internal surge suppressors have been tested against worst case conditions as defined in InternationalStandards.

Red status indication to show mains power / fuse OK
Voltage Rating (Nominal): 230V rms
Maximum Current Rating: 12.5A
Power Consumption: Negligible
Lead Length: 2m
Surge handling (8/20μs) [per socket]: 19.5kA [6.5kA]
Average Attenuation, Symmetrical 1-30MHz (dB): -50
Voltage Protection Level (Up) 8/20μs: 900V@3kA 8/20μs
Response Time: <10ns

Approvals

Annex C Location Category A & B

RS Pro 6 Gang Shucko Power Strip, Switched

From RS Pro, this robust multi-socket is ideal for powering several devices from a single mains power outlet. With multiple CEE 7/4 shucko sockets leading to a CEE 7/7 plug, this power strip can be used primarily in Germany, but also in several other european countries.

With a tough aluminium construction, this European shucko extension power strip is suitable for commercial and domestic purposes.

THe power strip is switched, meaning it can be turned off without having to unplug from teh mains. It also has built-in strain relief for extra protection, and features a neon power indicator for added convenience.

Features and Benefits

• Switched six socket power strip
• 16A Type CEE 7/4 Shucko Sockets
• 2m Cable
• Operating Temperature Range of -25°C to +70°C

Applications

With multiple sockets and a long extension lead, these power strips are highly versatile. Whether for an office installation or a domestic multimedia setup and can be used almost anywhere where access to a mains power outlet is limited. This shucko extension lead is durable and reliable

FAQ

Q: Is this extension socket fitted with a cable?

A:This trailing socket is pre-wired with a 2 meter lead, allowing a degree of mobility around a single mains power source.

Q: How can I mount this socket?

A: This socket is designed to be used as a trailing socket, and cannot be mounted without modification.

Why RS PRO?

RS PRO provides a comprehensive range of power and power extension solutions at affordable prices. Our trailing sockets, power plugs, and power adaptors are tested by RS experts to assure quality and reliability.

Whether you're powering industrial machinery or domestic appliances, RS PRO has a power plug or socket to suit your needs.

Power Distribution

For Desking & Racking Applications

Fully insulated interconnecting power distribution modules. Extension sockets to suit a variety of pruposes, from office planning to stage management.
