P7LF-06D, Omron Relay Socket for use with G7L Series, Контактная колодка

PCB Mounting & Plug-in - Power Relays - G7L Series

Relay compatible with momentary voltage drops up to 50% of rated voltage
High capacity and high dielectric strength
Flame-resistance UL94V-0 insulation material
Choice of connection types available - quick-connect or PCB terminals
Suitable DIN rail/surface socket (Front connecting socket) and relay mounting clip (E-bracket) available separately for use with quick-connect types G7L-1A-T and G7L-2A-T (not to be used with G7L-1A-TUB and G7L-2A-TUB upper bracket mount types)

Approvals

UL; CSA; TÜV

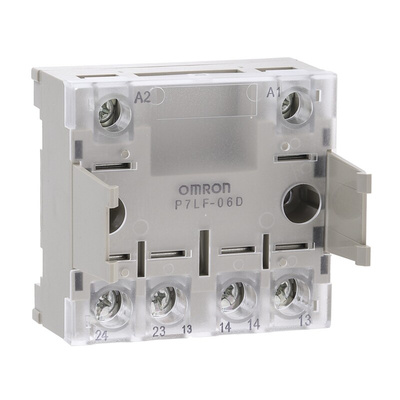

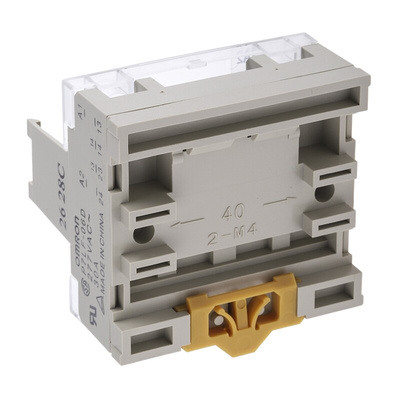

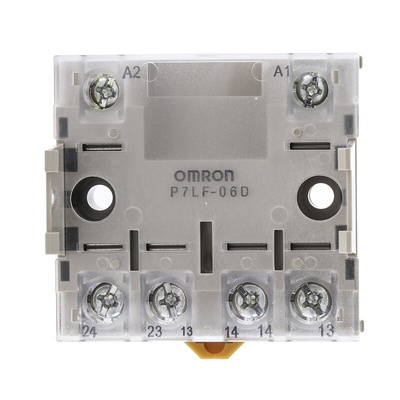

Omron Relay Socket

The Omron 6-pin DIN rail mount relay socket has screw terminal leads. It has a contact terminal current rating of 30A and voltage rating of 277VAC. The socketed relay is retained and ejected using a simple clip.
This relay socket is used with G7L series.

Features and Benefits

•
High capacity
• High dielectric strength
• Flame resistance

Applications

•
Timers
• Counters
• Temperature controllers

Certifications

•
UL approved
• CE certified
• CSA certified
• TUV approved

CSA 035535
