RS PRO 10W/m Trace Heating Tape Constant Wattage, Parallel Circuit, 240 V, 6m, Нагревательная лента

RS PRO Silicone Insulated Heating Tape

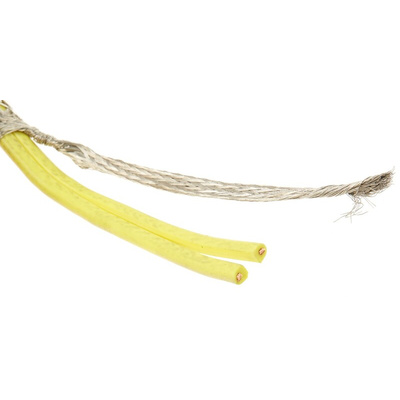

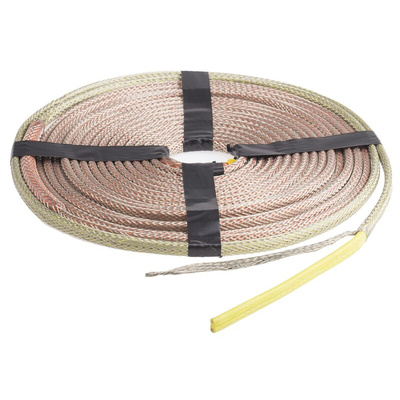

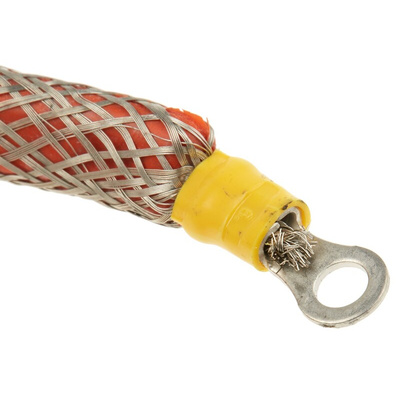

RS PRO range of anti-condensation heating tapes are intended for use to prevent condensation inside electrical and similar cabinets. The tape should not be subjected to temperatures above 200ºC and a thermostat may be used to control the tape. Parallel circuit, constant 10W output per metre heating tapes terminated in 1.3m of 2-core mains cable.

Constant wattage heating cables options:
379-722 - 3m cable
379-738 - 6m cable

RS PRO have a great range of trace heating products which can help protect pipes from freezing, by maintaining the right temperature inside the pipe. Heat tapes are a flexible solution that can be used to heat any surface or body requiring fast and efficient direct-contact heating.

Features and Benefits:

Trace Heating Tape Constant Wattage, Parallel Circuit
May be looped around an enclosure, avoids localised hot spots
Operating temperature range -70 to +200°C
Supply voltage 240 V
Available in 3m or 6m cable reels
Constant wattage cable - 10W output per metre
Easy to install
Very flexible
Can be cut to length from the cable reel
Outer cover material - Silicone rubber

Typical Applications:

Trace heating cables are electric heating elements designed to provide focused and controllable heat.
For use for internal or external temperature maintenance applications
Anti-condensation heating in cabinets
Refrigeration industry
Frost protection

FAQs
When is trace heating required?
Trace heating cable systems are ideal for protecting pipes from freezing, maintaining the temperature of a hot water system and maintaining process temperatures for smooth and efficient running of process plant equipment.

Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

Non-hazardous areas only.
