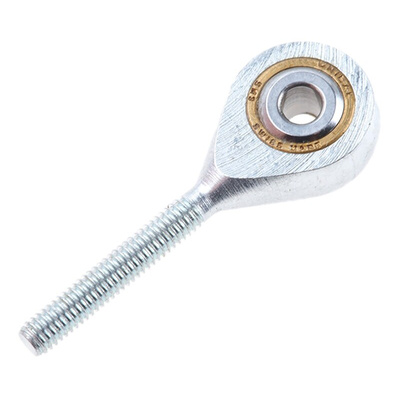

RS PRO M3 x 0.5 Male Steel Rod End, 3mm Bore, 33mm Long, Metric Thread Standard, Male Connection Gender, Шарнирная головка

RS PRO Male Steel Rod End, 3 mm Bore, 33 mm Long, Metric Thread Standard

Choose this high-performance rod end bearing from RS PRO to keep mechanical equipment running smoothly. You use it at the end of cylinders and shafts to accommodate angular misalignment between rotating machine parts. Its commonly found in steering knuckles and transmission linkages.
The robust rod end is made from passivated zinc-plated steel for extremely high resistance to corrosion, so there's little chance this component will rust. Hardened stainless-steel bearing balls offer low friction levels, which reduces the amount of heat the rod end generates, improving the overall efficiency of your machinery. The component also has a lubrication port to make it easier and less messy to grease.
You'll find rod end bearings of this kind being used in automotive and military applications. As it contains only minimal amounts of any harmful materials, this product is Restriction of Hazardous Substances (RoHS) compliant.

Features and Benefits

• Bore size of 3 mm
• Male connection gender
• Connection size of M3 x 0.5 male
• Metric connection thread standard
• Steel material
• Overall length of 33 mm
• Static load rating of 1220 Newtons (N)

Datasheet
