RS PRO M5 x 0.8 Male Steel Rod End, 5mm Bore, 41mm Long, Metric Thread Standard, Male Connection Gender, Шарнирная головка

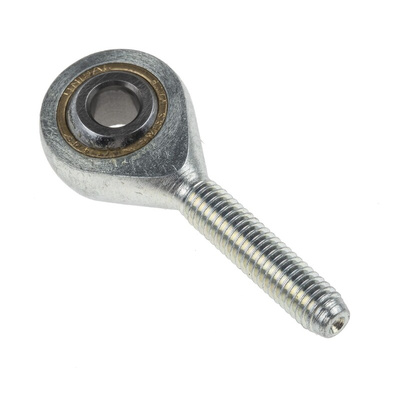

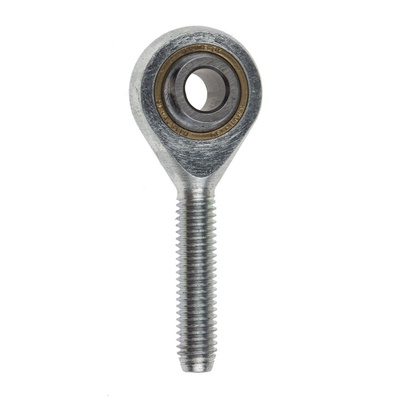

RS PRO Male Steel Rod End, 5 mm Bore, 41 mm Long, Metric Thread Standard

Ensure optimal performance from your mechanical equipment with this miniature rod end from RS PRO. It can be placed at the end of shafts and cylinders to accommodate angular misalignment between rotating machine parts. You'll typically find components such as this one in everything from car steering columns to track rollers in material handling systems.


The rod end is manufactured from passivated zinc-plated steel that's highly resistant to corrosion, which makes this item rust-proof and strong. Its bearing balls are made of a hardened stainless steel material that produces low levels of friction. This reduces the amount of heat generated by the rod end and makes your machine more efficient.


This product features a lubrication port for easy and mess-free greasing. It complies with the RoHS (Restriction of Hazardous Substances) requirements, meaning it contains only minimal amounts of any harmful materials.

Features and Benefits

• Bore size of 5 mm


• Male connection gender


• Connection size of M5 x 0.8 male


• Metric connection thread standard


• Steel material


• Overall length of 41 mm


• Static load rating of 3460 Newtons (N)

Datasheet
