9535.00U305, Belden Multicore Industrial Cable, 0.22 mm², 5 Cores, 24 AWG, Screened, 305m, Chrome Sheath, Кабель

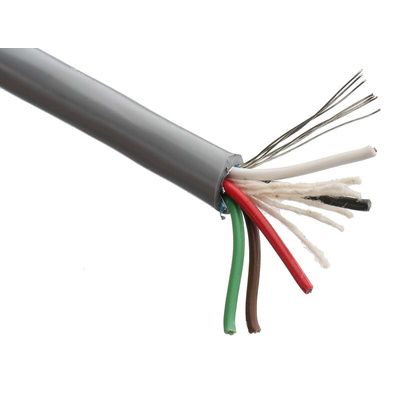

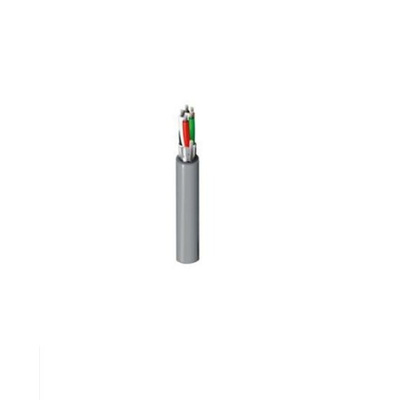

Belden Screened Multicore Industrial Cable, 305m Length, 24 AWG - 9535.00U305

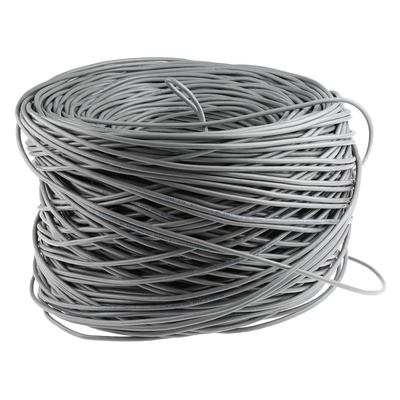

Use this industrial cable from Belden to supply power to your equipment and appliances. It's unterminated at both ends, giving you the freedom to cut it and use a connector that suits your setup. The cable has tinned copper conductors, giving you a reliable and steady connection. To prevent electromagnetic interference (EMI), it's covered in Belden's patented Beldfoil screen, which ensures clear and noiseless signal transmission. A reel length of 305 metres means you'll have plenty of cable for large spaces or multiple jobs.

Features & Benefits

• Wide operating temperature range of -30°C to +80°C for use in harsh environments
• Light weight of 10kg/1000ft for easy handling
• Minimum bend radius of 10 times its diameter for reliable flexibility
• PVC (polyvinyl chloride) insulation to protect you from electric shocks

Applications

• Industrial mainframe computers
• Programmable logic controllers (PLCs)

What's the voltage rating of this cable?

This cable has a voltage rating of 300V, making it suitable for various low-voltage applications.

What's a drain wire used for?

This cable comes with a tinned-copper drain wire to complete the electrical circuit of its shield and carry unwanted electrical noise to the ground.

Standards

UL2464; NEC CMG

Datasheet

Cable Selection Guide
