9536.00U305, Belden Multicore Industrial Cable, 0.22 mm², 6 Cores, 24 AWG, Screened, 305m, Chrome Sheath, Кабель

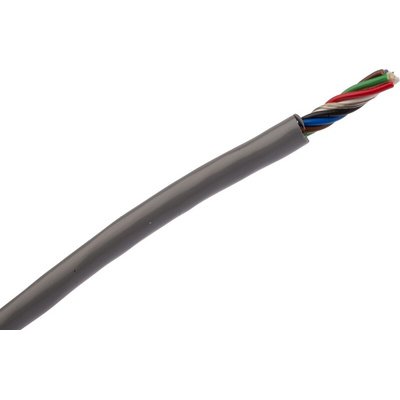

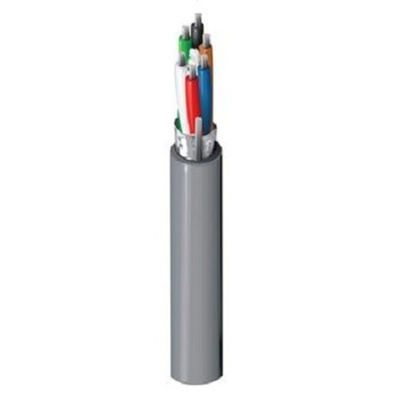

Belden Screened Multicore Industrial Cable, 305m Length, 24AWG - 9536.00U305

For effective communication between your equipment, choose this multicore industrial cable from Belden. It features semi-rigid polyvinyl chloride (PVC) insulation that protects you from electric shocks and enhances workplace safety. As its conductors are made of tinned copper material, they're durable and highly conductive, so deliver efficient transmission. Patented Beldfoil screening eliminates electromagnetic interference (EMI), making for a noiseless signal relay. The cable comes with a drain wire that works along with the shielding to ensure that the electrical circuit is effectively grounded.

Features & Benefits

• Low conductor resistance of 82.02Ω/km for speedy signal transmission
• Minimum bend radius of 10 times its diameter for enhanced flexibility to allow for installation around corners
• Wide operating temperature range of -30°C to +80°C for use in demanding conditions
• Light bulk weight of 10.88kg/1000ft for easy manual handling

Applications

• Robotics and automation• Automotive industries

Is this cable safe for use in fire-risk areas?

This cable is flame-retardant, so it won't allow flames to spread when a fire occurs, making it a safe choice.

What's the voltage rating of this cable?

This unit has a voltage rating of 300V, so it's practical for use in low-voltage to medium-voltage applications.

Standards

UL2464; NEC CMG
