9501.00U305, Belden Twisted Pair Data Cable, 1 Pairs, 0.25 mm², 2 Cores, 24 AWG, Screened, 305m, Chrome Sheath, Кабель

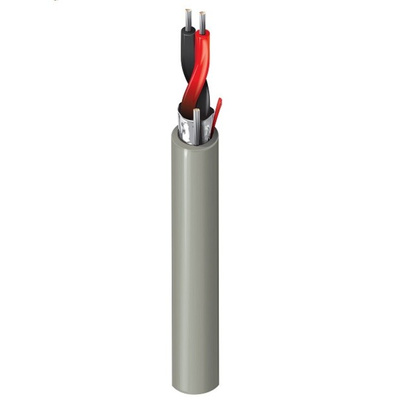

Belden 1 Twisted Pair Screened Data Cable, 0.25mm² CSA, 305m Length - 9501.00U305

This screened cable from Belden transfers data between devices in a computer communications network. It features a robust PVC jacket that resists contaminants commonly found in industrial areas, like chemicals and grease. The outer jackets also protect against above-average wear and tear. A patented Beldfoil shield provides electrostatic shielding, so reduces the risk of interference from nearby electronic devices. The twisted pair cable is flexible, meaning you can bend it around corners without the risk of signal loss.

Features & Benefits

• PVC insulated for protection against electric shocks
• Drain wire routes electrical noise into the ground to minimise signal interference
• Tinned copper conductors resist corrosion, so are suited to humid conditions
• Broad operating temperature range of -30°C to +80°C for use in demanding environments

Applications

• Computer communications
• Low voltage digital control
• Line level audio

Can I use this cable over long runs without losing signal?

Yes, this product is suitable for long cable runs as it has low capacitance and delivers strong signal transmission over extended distances.

Will this cable interfere with other cables?

There's little risk of this cable interfering with nearby wiring as its signals are carried in opposing directions. This means its internal magnetic fields cancel each other out.

9501 Mid-High Capacitance Computer Cable Data Sheet

Cable Selection Guide

Belden 9501.00U305 Datasheet
