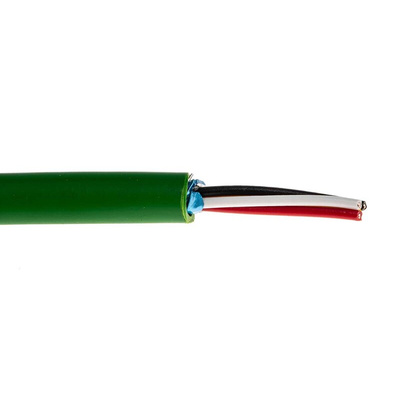

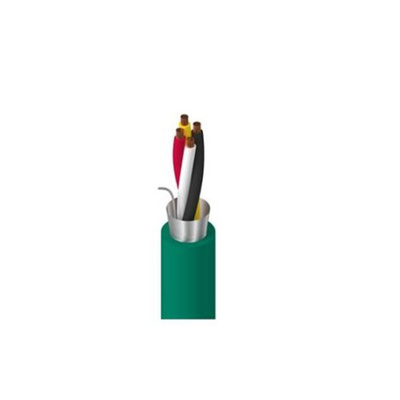

YE00820.00100, Belden Multicore Industrial Cable, 0.5 mm², 4 Cores, 20 AWG, Screened, 100m, Green Sheath, Кабель

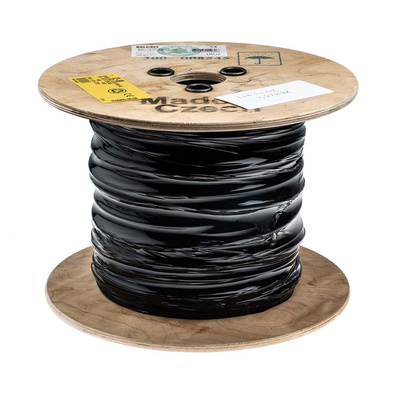

Belden Screened Multicore Industrial Cable, 100m Length, 20AWG - YE00820.00100

Choose this weatherproof cable from Belden for efficient communication between equipment in building management networks. It's an EIB (European Installation Fieldbus) cable, designed for use in Konnex intelligent control systems. As it's a twisted pair type, it comes with conductors wound around each other in pairs to prevent electromagnetic interference (EMI). This gives you clean and noiseless signal transmission. A wide operating temperature range of -20°C to +70°C means you can rely on this cable in demanding environmental conditions.

Features & Benefits

• Bare copper conductors for durability and corrosion resistance
• Polyvinyl chloride (PVC) outer sheath for resistance to impact and abrasion
• Low conductor-to-conductor capacitance of 50 pF/m (picofarad per metre) for high-integrity signals
• Minimum bend radius of 30.5mm to allow for flexible installation around corners

Applications

• Heating, ventilation and air conditioning (HVAC) systems• Industrial lighting

How many conductors does this cable have?

Ths cable has four copper conductors that are twisted around each other to form two pairs.

What's the resistance of the conductors on this cable?

This cable's conductors have a low DCR (direct current resistance) 37.5Ohm/km (ohm kilometre) to allow for speedy signal transmission.
