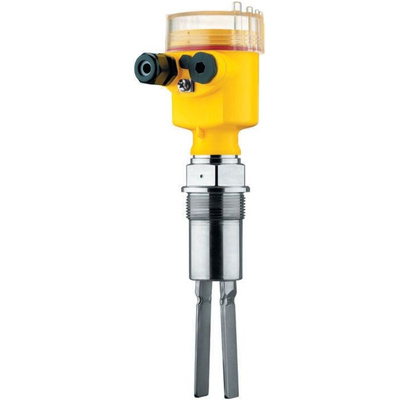

WAVES61.EXX2RA, Vega VEGAWAVE 61 Series Tuning Fork Level Switch, Relay Output, Horizontal, Aluminium/PBT Body

Vega Vibrating Level Switch

The Vega vibrating level switch has a relay (DPDT) output. This level switch detects the minimum or maximum level reliably. The tuning fork is ideal for use in adhesive and abrasive products as well as in bulk solids with low density. It detects light bulk solids, even those down to 8g/L. The robust construction also makes it possible to use it in very heavy media. Vibrating Liquid/Solid Level Probes – Squings.
All of these probes are maintenance-free and have an external LED switch status indication.

Features and Benefits

The supply voltage ranging from 20VAC to 253VAC and 20VDC to 72VDC
Process fitting material is thread from G 1 A or 1 NPT

Easy setup without adjustment
Product-independent switching point
Rugged sensor construction
Insensitive to build-up and statically charged products
maintenance-free and does not wear
External LED switch
Housing material PBT (plastic)
Housing protection
Switching current is 400mA (maximum)
Blocking current is greater than 100μA
Switching delay ON: approx. 0.5 seconds/OFF: approx. 1 second
Probe length is 220mm (8.7in)

Applications

Ideal level switch for almost all bulk solids applications
Used for overfill and low-level detection in media like grain, fine aggregates, sand and heavier powders such as cement and metal oxides
Applications in heavy, fine to coarse bulk solids

Certifications

IP66 rated

IP67 rated
ATEX II 1/3 D IP66 T
