53015000+53019000, Lapp SKINTOP Series Grey Polyamide Cable Gland, PG7 Thread, 2.5mm Min, 6.5mm Max, IP68, Кабельный ввод

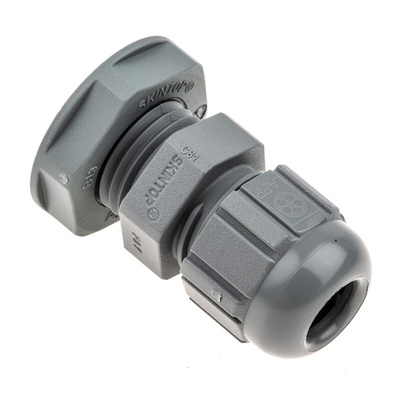

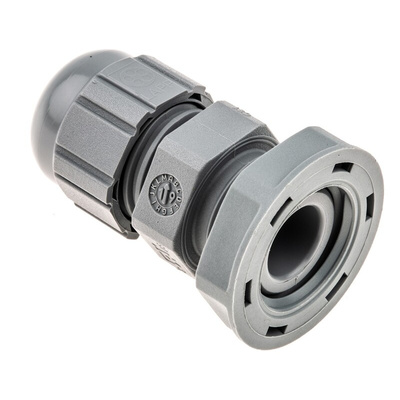

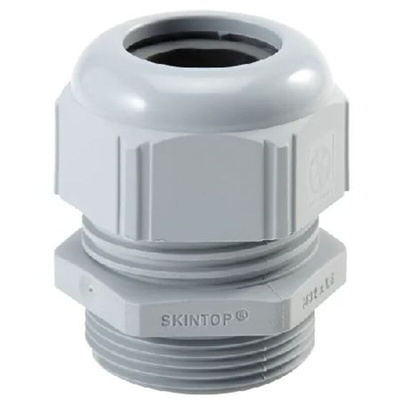

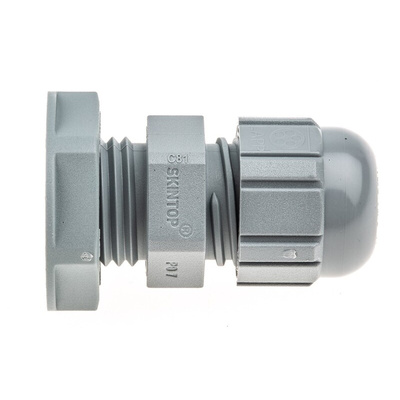

LAPP Cable Gland, PG7 Thread, 2.5 to 6.5mm Cable Diameter - SKINTOP Series - 53015000+53019000

Protect your electrical wires from damage with this robust cable gland from LAPP. It provides strain relief for your cables, preventing them from twisting and bending at damaging angles, which prolongs their lifespan. The unit's body and locknut are made of durable polyamide. This material is resistant to impact and abrasion, so it's a good choice for demanding work environments. The unit has a sealing ring made of CR (chloroprene rubber) and an O-ring made of NBR (nitrile butadiene rubber) to prevent air or moisture from getting inside and compromising your connections.

Features & Benefits

• Wide operating temperature range of -40°C to +100°C for use in harsh environments
• Simple screw-on installation saves time and effort

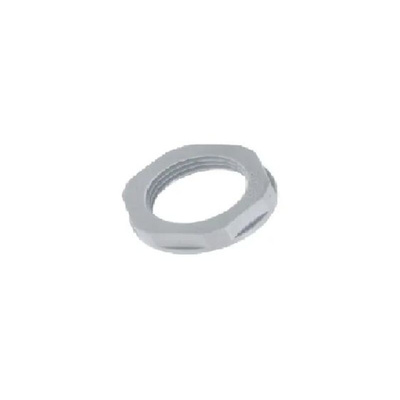

• Includes a locknut for a vibration-proof hold on the panel or enclosure
• Grey colour means it's easy to write on with black ink for identification purposes

Applications

• Automation technology
• Offshore platforms

Is this cable gland resistant to dust?

This cable gland has an IP68 (ingress protection) rating. This means it's resistant to dust and able to withstand immersion in shallow water for up to 30 minutes.

Datasheet

Cable Gland Selection Chart

Locknut Datasheet

Locknut Datasheet
