53015010+53019010, Lapp SKINTOP Series Grey Polyamide Cable Gland, PG9 Thread, 3.5mm Min, 8mm Max, IP68, Кабельный ввод

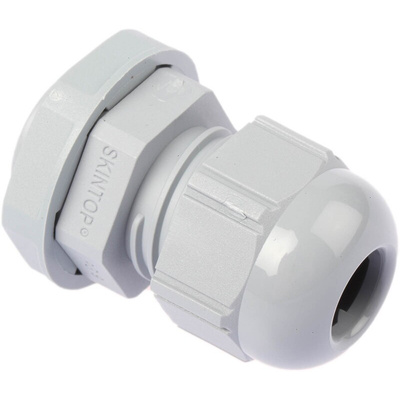

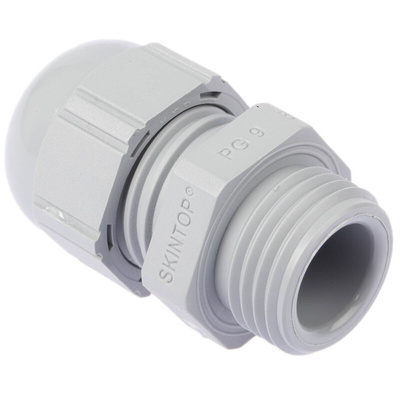

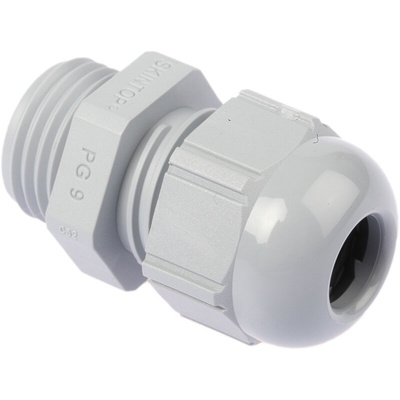

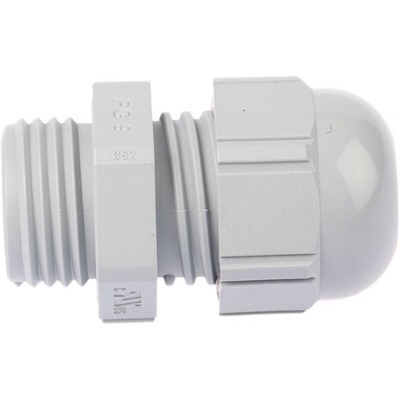

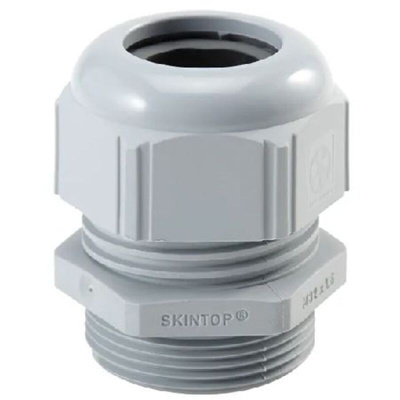

LAPP Cable Gland, PG9 Thread, 3.5 to 8mm Cable Diameter - SKINTOP Series - 53015010+53019010

Safeguard wires in your electrical equipment with this robust cable gland from LAPP. It's an essential piece of kit that prevents dust and contaminants from getting into your connections, which improves performance and electrical safety. The unit also provides strain relief to stop your cables from twisting or bending at angles that could damage them. A locknut is on hand to provide mechanical stability – it won't come loose even in vibrating systems. Thanks to a wide cable diameter range of 3.5 to 8mm, this is a versatile option.

Features & Benefits

• Polyamide body for resistance to impact and abrasion
• Ultraviolet (UV) stable to withstand exposure to direct sunlight
• IP68 (ingress protection) rated, so can withstand dust and immersion in up to 1.5m of water for 30 minutes
• Wide operating temperature range of -40°C to +100°C ensures it's safe to use in demanding environments

Applications

• Manufacturing equipment
• Industrial tools

How do I install this cable gland?

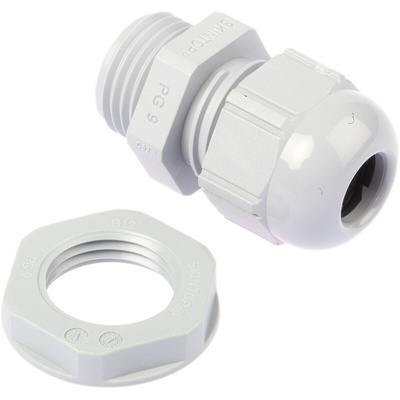

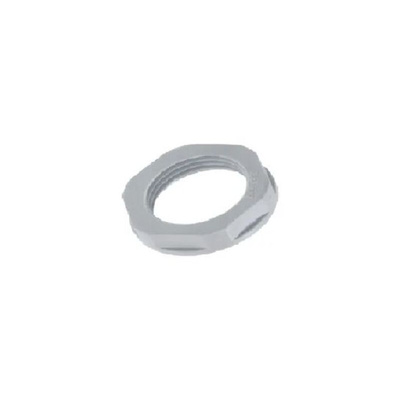

This cable gland is easy to install. Simply mount it through a pre-drilled hole on your panel or enclosure and secure it in place using the locknut.

SkinTop ST Product Information

Datasheet

Cable Gland Selection Chart
