52015700+52003490, Lapp SKINTOP Series Metallic Nickel Plated Brass Cable Gland, PG7 Thread, 2mm Min, 6.5mm Max, IP68, Кабельный ввод

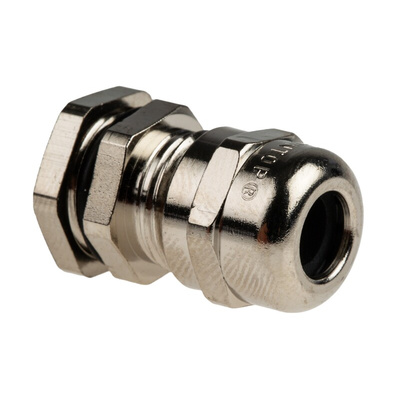

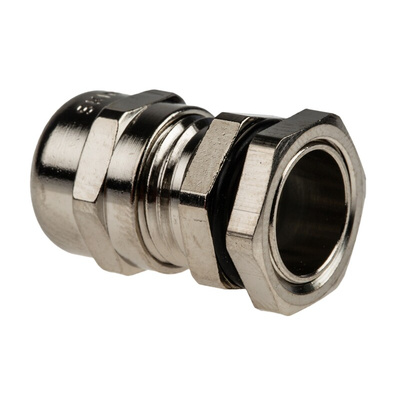

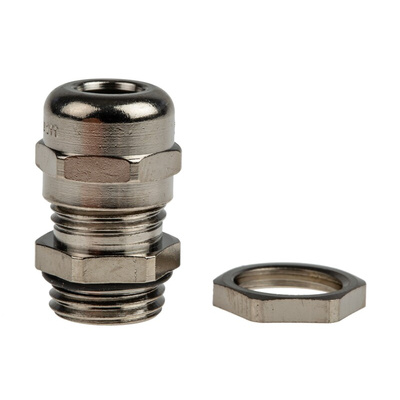

LAPP Nickel Plated Brass Cable Gland, PG7, 6.5mm Maximum Cable Diameter - SKINTOP MS Series - 52015700+52003490

When you need a reliable cable gland with excellent strength and chemical resistance, look to this round-top option from LAPP. Its nickel-plated brass construction isn't just robust, but it also offers reliable resistance to a wide range of temperatures and corrosion. Use this cable gland to provide optimum strain relief and protection for the connection point and circuitry inside your electronic equipment.

Features & Benefits

• Screw-on design for fast installation
• Suitable for 2 to 6.5mm cable diameters for versatility
• Wide operating temperature range of -25°C to +100°C for use in demanding environments
• IP68 (ingress protection) rating means it's dust-tight and able to withstand 30 minutes immersion in 1.5m of water

Applications

• Machine and equipment manufacturing
• Plant engineering
• Chemical industry
• Measurement and control technology

Should I choose a plastic or brass cable gland?

This depends on where you are using the cable gland. Galvanized nickel-plated brass is stronger than plastic, offering higher resistance to mechanical strain. Plastic cable glands are still strong but are generally used in applications that are subjected to lower stress.

Datasheet

Cable Gland Selection Chart

390088 Datasheet

Catalogue - Main catalogue 2020 - 21
