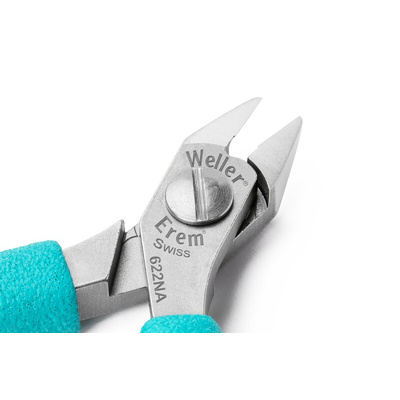

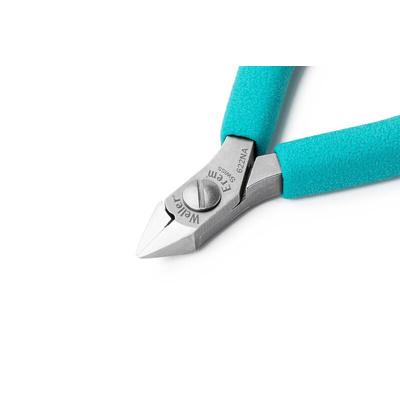

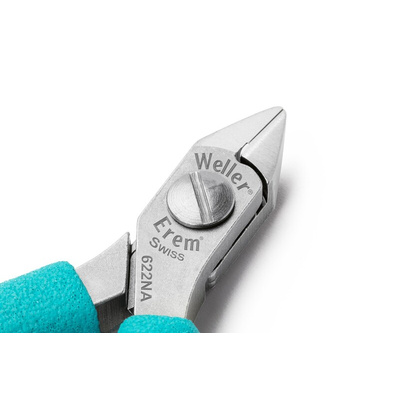

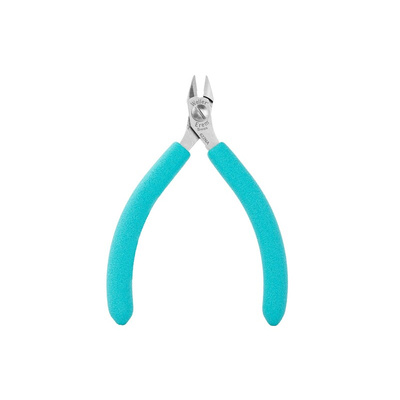

622NA, Weller Erem 110 mm Side Cutters, Кабельные ножницы

Miniature side cutters 622 NB (420-5748) and 622 NA (391-343)

These electronic cutters are manufactured from high quality machined tool steel. These cutters feature a built-in internal stop and integral return spring to prevent blade overlapping and reduce operator fatigue. All cutters are supplied with soft grip foam rubber grips.

These cutters have a flush cut design and are suitable for cutting medium hard wire, stainless steel wire and soft wire like copper and aluminium. The ergonomic design means a comfier grip and less hand fatigue when used over a long period.

This range includes the following types of diagonal cutters.

622NA – 391-343 - 110mm Flush Type Cable Cutter 1mm cutting capacity with tapered head
622NB – 420-5748 - 110mm Flush Type Cable Cutter 0.8mm cutting capacity with tapered relieved head

Miniature cutter with fine tip.
Flared, straight end under cutting edges.

Features and Benefits for 622NA:

• Micro - Series 600 side cutter


• Flush cut – leaves a smaller tip at the end of the wire than a semi-flush cut


• ESD safe – can be used in areas where there may be a sudden flow of electrostatic discharge which can destroy sensitive electronic components


• Maximum cutting capacity (medium): 0.6 mm


• Maximum cutting capacity (copper wire): 0.9 mm


• Length of cutting edges: 9 mm


• Head width: 9 mm


• Head thickness: 6mm


• Head length: 15 mm


• Weight: 48g

Applications:

Cable Cutters are tools designed with electricians in mind, but a reliable set of cable cutters should always be at hand. These tools are ideal for cutting and stripping wires of all shapes and sizes. Wire cutters feature ergonomic designs for comfort, confidence and safety of use. Speciality models are suitable for insulated wire cutting and use in Electrostatic Discharge (ESD) environments. Cable cutters are commonly used by:

• Electricians


• Gas engineers


• Telecommunication engineers


• Car mechanics


• DIY enthusiasts

FAQ:

What’s the maximum cutting capacity?

The maximum cutting capacity for these cutters is 1 mm.

It is essential that you have the right wire cutter providing you with a clean cut through cable and wire. These wire cutters will cut cleanly and easily with the 1 mm cutting capacity. The cable and wire cutter are excellent for use on;

• Copper wire


• Aluminium wire


• Steel wire

PINCE COUPANTE 622NA

Series 600 Datasheet
