53015640+53019040, Lapp SKINTOP Series Grey Polyamide Cable Gland, PG16 Thread, 9mm Min, 14mm Max, IP68, Кабельный ввод

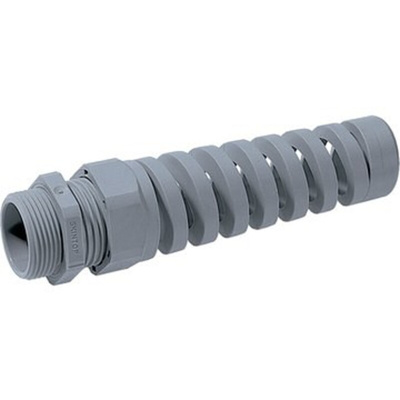

Lapp IP68 PG Spiral Support Gland

From Lapp, this PG Spiral Support Gland is an ideal way to protect cable connections. With an integrated protective spiral, the gland provides extra strain relief and bend protection for the attached cable, meaning a higher resistance to wear and tear.

With a simple screw on action that reduces assembly time, the gland is a quick and easy way to provide a high level of environmental resistance. It also has a wide clamping range, to accommodate a variety of cable sizes.

Features and Benefits

• Integrated Spiral Support
• IP68 Protection
• Screw-On Assembly
• Optimum Strain Relief
• Chemcial Resistance
• Temperature Resistance
• Wide Clamping Range

Applications

Due to the dependable bending and anti-kink protection inherent to this cable gland, it is ideal for use with hand held and portable devices. Where ever a device is often moved, this spiral cable gland protects against stresses to the attached cable.

• Robotics Industry
• Light and Sound Applications
• Moving Machine Parts

Environment

The cable gland seals to IP68, which means it has a very high resistance to dust and particle ingress, and is water proof even in shallow submersion. This makes it ideal for powered devices in harsh industrial environments, and even for open air applications.

Supplied with

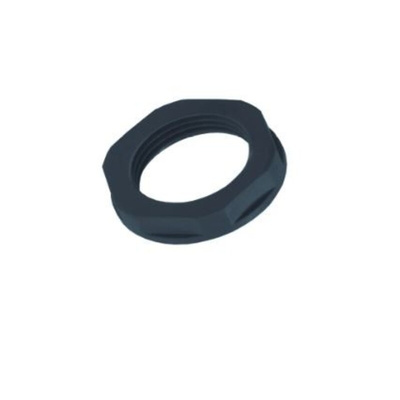

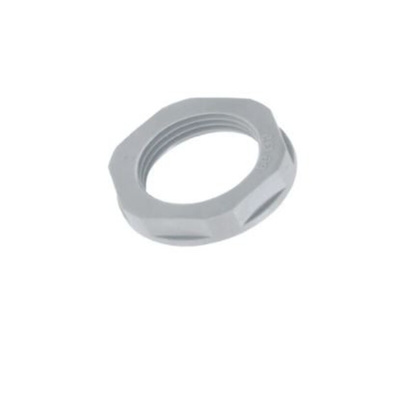

Lock nut

LAPP Cable Gland, 9 to 14mm Cable Diameter, PG16 Thread - SKINTOP Series - 53015640+53019040

Safeguard your leads against wear and tear with this cable gland from LAPP. Its spiral-shaped body offers strain relief and bend protection to extend the service life of attached cables. For flexibility, the unit accommodates wire diameters between 9 and 14mm. Simply screw it into a mounting hole to make a secure attachment to your equipment. When mated, it carries an IP68 rating, meaning it's completely dust-tight and waterproof.

• Tough PA construction for resistance to chemicals
• Grey colour for discreet installation in your network
• Wide operating temperature range between -20°C and +100°C for use in demanding conditions

Applications

• Instrumentation applications
• Medical equipment
• Telecommunications systems

How do I choose the right cable gland?

Ensure the component's construction and ingress protection level are suitable for your environment. You also need to match the wire size to the gland.

Datasheet

Cable Gland Selection Chart

Datasheet - 53019 Series
