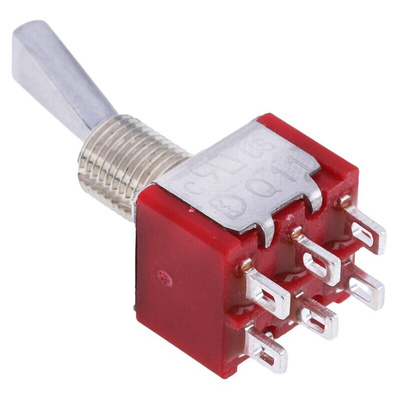

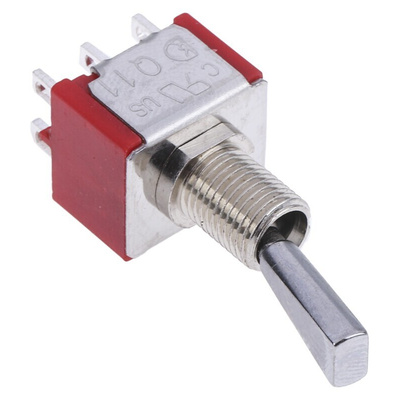

RS PRO Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal, Тумблер

RS PRO DPDT Toggle Switch, Latching, Panel Mounting

This robust switch from RS PRO offers two-way toggle positions for manual off and on control of electrical circuits. It consists of a Diallyl Phthalate (DAP) case that serves as protection and insulation for the switch. It also features a chrome-plated brass actuator and silver contacts for reliable conductivity.
This switch has a sealing boot or hood that protects it from dust, sand or liquids stopping any potential damage and failure. It also has epoxy-sealed terminals that prevent contamination during soldering to ensure a stable and secure connection to the circuit.

Features and Benefits

• Actuator length of 12.3 mm
• Brass actuator material
• Double Pole Double Throw (DPDT) contact configuration
• Contact current rating of 5 A (amps) at 250 V (volts) AC
• Copper alloy contact material
• Contact resistance of 10 mΩ
• Operating temperature of -30°C to +85°C
• Mechanical life of 40000 cycles
• Panel mounting
• RoHS (Restriction of Hazardous Substances) and lead-free standards met
• Latching switch operation
• Solder terminal type
