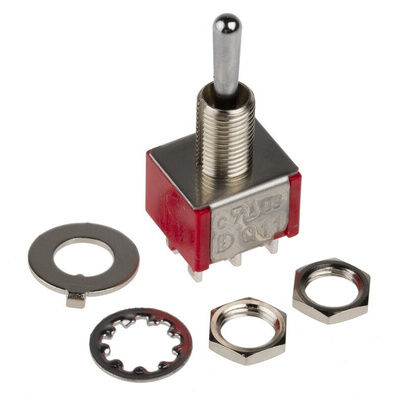

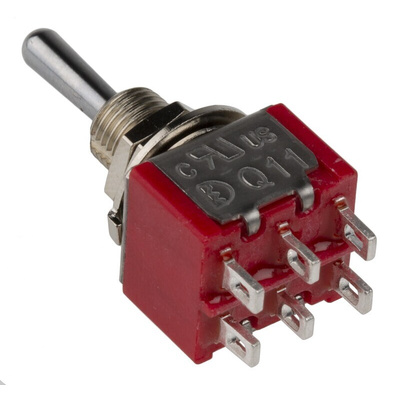

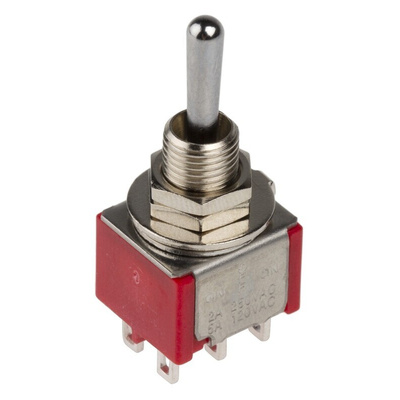

RS PRO Toggle Switch, Panel Mount, On-Off-On, DPDT, Solder Terminal, Тумблер

RS PRO DPDT Toggle Switch, On-Off-On, Panel Mounting

This Double Pole Double Throw (DPDT) switch from RS PRO allows one pole to serve two different circuits. It has contacts made of a copper alloy material for increased conductivity. These are plated with silver to increase their resistance to corrosion.
A mechanical life of 40000 cycles ensures that you can use this product for a long time before you need to change it. The Diallyl Phthalate (DAP) case offers both water and heat resistance. It also has an Underwriters' Laboratories (UL) rating of UL94V-0 meaning in the case of an accidental fire, the flame won't last for more than 50 seconds.

Features and Benefits

• Actuator length of 10.41 mm
• Brass actuator material
• DPDT contact configuration
• Contact current rating of 5 A (amps) at 250 V (volts) AC
• Copper alloy contact material
• Contact resistance of 10 mΩ
• Operating temperature of -30°C to +85°C
• Mechanical life of 40000 cycles
• Panel mounting
• RoHS (Restriction of Hazardous Substances) and lead-free standards met
• On-off-on switch operation
• Solder terminal type

Dimensional Drawing

RS PRO Datasheet
