Form A & C Reed Switches
Suitable for use with location sensors, proximity switches and level switches at low to medium voltages and current
Electrical Life 105 - 106 Switching Cycles
Mechanical Life 109 Operations
For suitable magnets, see stk. no 118-7108 typically

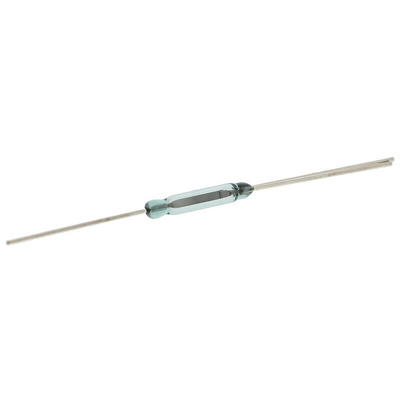

Sensata Cynergy3 Reed Switch, Rhodium Contacts, 5VA Maximum Switching Power - TRC200S/20-30
To activate medium-voltage sensors or proximity and level switches, choose this reed switch from Sensata Cynergy3. It consists of a sealed glass tube containing one NO and one NC circuit with a metal switch between them. When it senses a magnetic field, the switch changes position, redirecting the flow of current from one contact to the other. You'll find this component in automotive systems, industrial processing and laboratory applications.
Features & Benefits
• Low contact resistance of 100mΩ for reliable energy transfer
• Maximum switching current of 250mA for energy efficiency
• Maximum operating time of 0.7ms for fast switching
• Compact dimensions of 53 (L) x 2.7mm (diameter) to add minimal bulk to your setup
• SPCO contact configuration combines NC and changeover switching functions for versatility
What material are this reed switch's contacts made of?
This reed switch has rhodium contacts, which are highly conductive and able to handle heavy electrical loads.
What's the operating temperature range of this switch?
This switch has a wide operating temperature range between -40°C and +125°C, so it can withstand use in harsh industrial conditions.
