RS PRO Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal, 120 ac/dc, 28V ac/dc, Тумблер

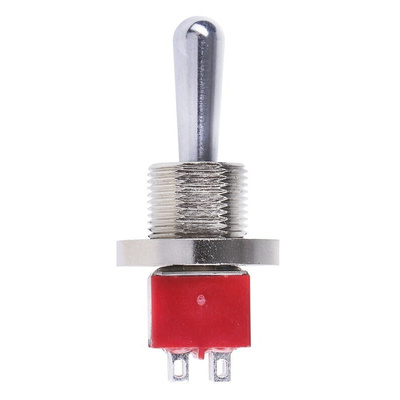

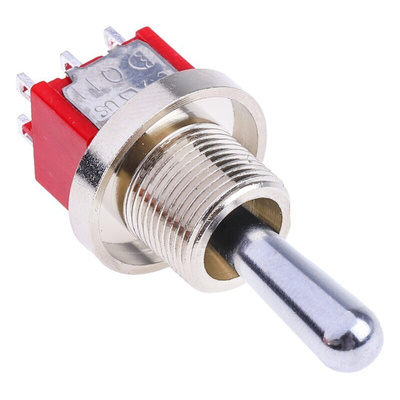

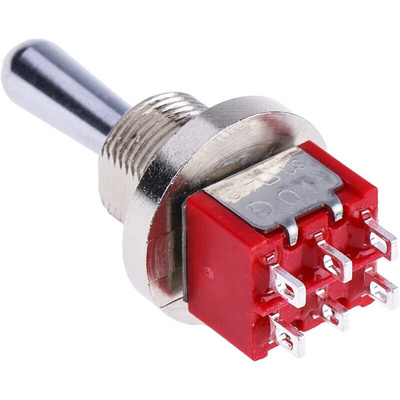

RS PRO DPDT Toggle Switch, Latching, Panel Mounting

Use this easy to use Double Pole Double Throw (DPDT) switch to toggle an electrical circuit on or off. It's made of silver contact material for improved conductivity and it has brass terminals that are epoxy-coated to prevent contamination during soldering.
This component's installation is straightforward as it mounts directly onto your circuit panel. It also has a protective case that's made of Diallyl Phthalate (DAP), a material that has been tested and proven to be flame retardant. This switch is commonly used in the electronics industry in a variety of testing and operation applications.

Features and Benefits

• Actuator length of 17.56 mm
• Chromium-plated brass actuator material
• DPDT contact configuration
• Contact current rating of 5 A at 28 V DC
• Silver contact material
• Contact resistance of 10 mΩ
• Operating temperature range of -30°C to +85°C
• Mechanical life of 40000 operations
• Panel mounting
• Panel cut out diameter of 11.91 mm
• Panel cut out size of 11.91 mm
• RoHS (Restriction of Hazardous Substances) and lead-free standards met
• Latching switch operation
• Solder terminal type
