RS PRO Toggle Switch, Panel Mount, (On)-Off-(On), DPDT, Solder Terminal, 120 ac/dc, 28V ac/dc, Тумблер

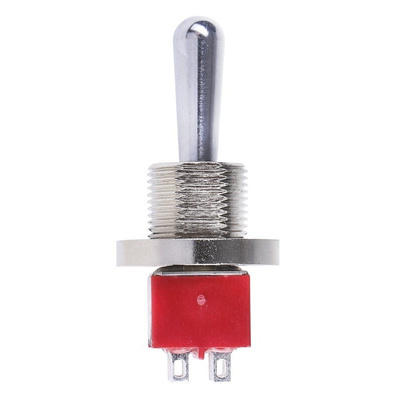

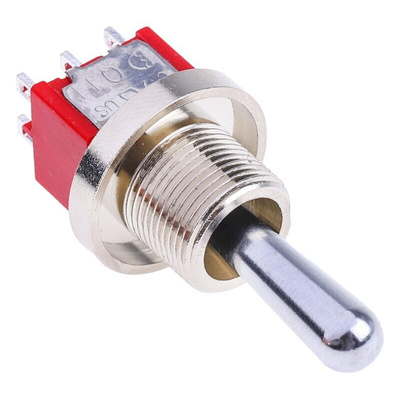

RS PRO DPDT Toggle Switch, (On)-Off-(On), Panel Mounting

Toggle an electrical circuit on or off with this Double Pole Double Throw (DPDT) switch from RS PRO. Its brass terminals are epoxy-coated to prevent contamination during soldering, and its silver contacts provide reliable conductivity.
For ease of installation, you can mount this component directly to your circuit panel. It also features a protective casing composed of flame-retardant diallyl phthalate (DAP). In the electronics industry, this switch is commonly used in a range of testing and operating applications.

Features and Benefits

• Actuator length of 17.56 mm


• Chromium-plated brass actuator material


• DPDT contact configuration


• Contact current rating of 5 A at 28 V DC


• Silver contact material


• Contact resistance of 10 mΩ


• Operating temperature range of -30ºC to +85ºC


• Mechanical life of 40000 operations


• Panel mounting


• Panel cut out diameter of 11.91 mm


• Panel cut out size of 11.91 mm


• RoHS (Restriction of Hazardous Substances) and lead-free standards met


• (On)-Off-(On) switch operation


• Solder terminal type

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
