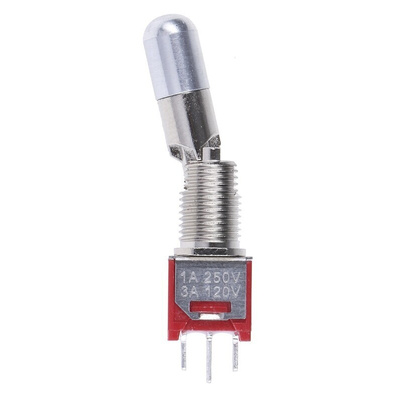

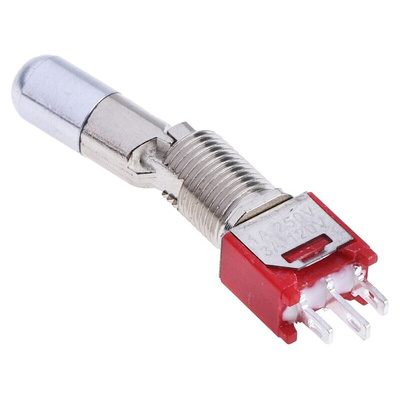

RS PRO Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal, Тумблер

RS PRO SPDT Toggle Switch, Latching, Panel Mounting

Use a single input to control two separate circuits with this RS PRO SPDT (Single Pole Double Throw) switch. This type of device is commonly used to control industrial machines, motors and relays. To ensure reliable connections, this switch has high-quality brass contacts. The terminals are also epoxy-sealed to prevent contamination during soldering, ensuring that the solder won't break.


To prevent accidental operation, the toggle on this switch locks into the selected position when actuated. The casing is made of diallyl phthalate (DAP), which complies with the Underwriters' Laboratories UL-94-V0 safety standard. In the event of a fire, this means that it won't burn for more than 50 seconds. You can count on a lengthy service life thanks to its mechanical life of 30,000 cycles.

Features and Benefits

• Actuator length of 16 mm


• Brass actuator material


• SPDT contact configuration


• Contact current rating of 3 A (amps) at 120 V (volts) AC


• Brass contact material


• Contact resistance of 20 mΩ


• Operating temperature range of -30ºC to +85ºC


• Mechanical life of 30000 cycles


• Panel mounting


• RoHS (Restriction of Hazardous Substances) and lead-free standards met


• Latching switch operation


• Solder terminal type

Applications
