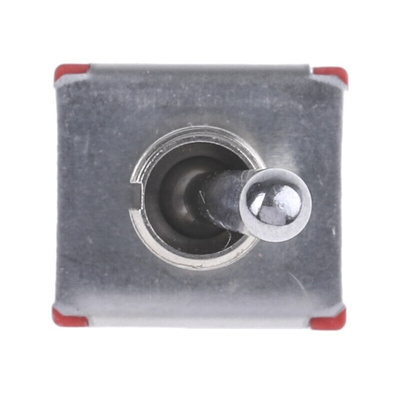

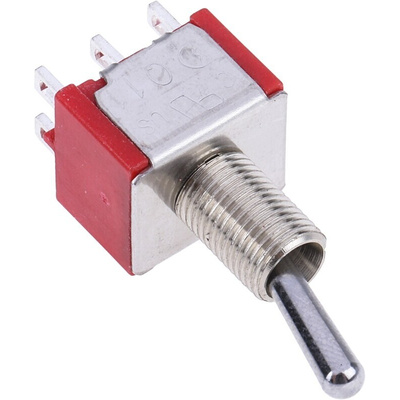

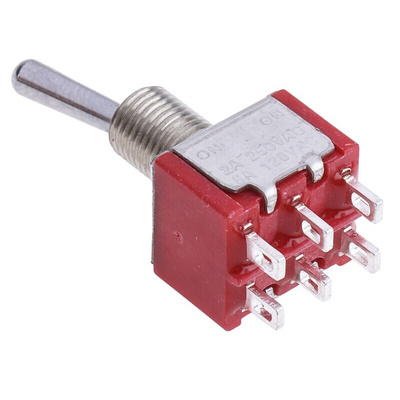

RS PRO Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal, Тумблер

RS PRO DPDT Toggle Switch, Latching, Panel Mounting

This RS PRO Double Pole Double Throw (DPDT) switch has two poles that can serve two independent circuits. Its silver-plated copper alloy contacts ensure reliable conductivity and resistance to corrosion for high-quality performance.


You'll be able to use this product for a long time without replacing it, as it has a mechanical life of 40,000 cycles. The diallyl phthalate (DAP) shell is water and heat-resistant for added durability. It also has an Underwriters' Laboratories (UL) rating of UL94V-0. This means that flames will self-extinguish within 50 seconds in the event of a fire.

Features and Benefits

• Actuator length of 10.41 mm


• Brass actuator material


• DPDT contact configuration


• Contact current rating of 5 A (amps) at 250 V (volts) AC


• Copper alloy contact material


• Contact resistance of 10 mΩ


• Operating temperature of -30ºC to +85ºC


• Mechanical life of 40000 cycles


• Panel mounting


• RoHS (Restriction of Hazardous Substances) and lead-free standards met


• Latching switch operation


• Solder terminal type
