T0052919099, Weller Electric Soldering Iron, 24V, 40W, for use with WD1M, WD2M Soldering Stations, Паяльник

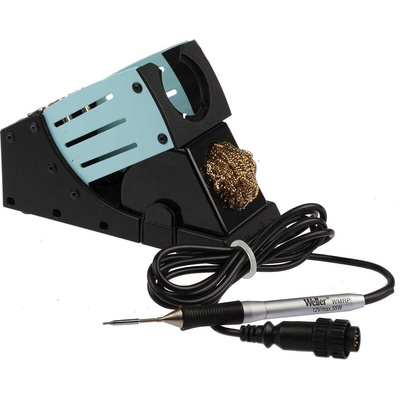

WMRP Micro Soldering Iron Set with WDH50 Soldering Iron Rest.

Weller offers you the WMRP Micro soldering iron set complete with the WDH50 soldering iron rest/soldering iron stand and the RTM 013 (RT 3) micro chisel soldering tip. The soldering iron set is excellent for work that need a high energy level plus is small enough for soldering work when using a microscope. Soldering tips are easily changed through the active tip cartridge system even when the soldering iron is still hot. The versatile soldering iron set heats up quickly and had a standby function plus is compatible with the WR 3M re-work soldering station and the WT 2M soldering station.

Features and Benefits.

• Soldering set / Kit, Iron, stand and solder tip.


• 12 V rating


• 40 W power (55 W with the RT11).


• Heating time 3 seconds.


• Active tip technology.


• RT Tip range.


• Temperature range 100°C to 450°C.


• ESD safe


• WT Compatible.

What is Included in the Soldering Kit?

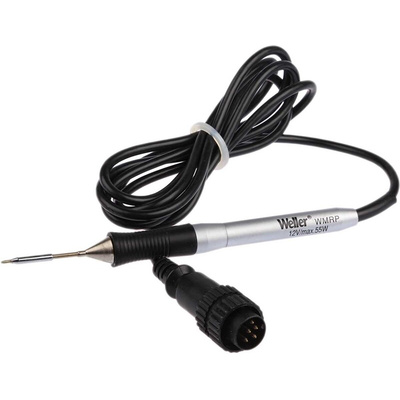

• WMRP Micro Soldering Iron.

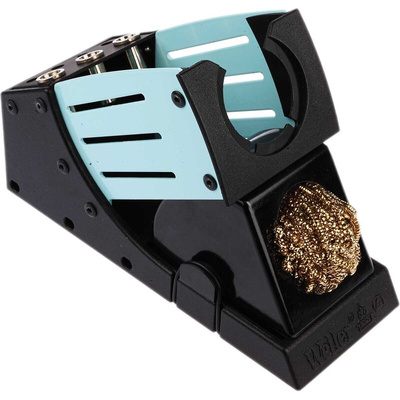

• WDH 50 soldering iron safety rest (stop and go function).


• RT Micro standard solder chisel tip (diameter 1.3 mm).

Replacements Available.

• WDH 50 model, Soldering Iron Safety rest – Stock number 185671.


• WMRP model, Electric Soldering Iron – Stock number 6204898.


• RT 3 straight Chisel Soldering Iron Tip – Stock number 4986734.

Compatible Soldering Stations Available.

• WR 3M 3-Channel Power Unit Soldering Station, 360 W – 186630.


• WT 2M 2-Channel Power Unit Soldering Station, 150 W – 1763371.

Station Irons - Weller

57 Page ESD Control Selection Guide

Datasheet T0052919099N
