91.922.3353.0, Wieland GST15i2 Series Mini Connector, 2-Pole, Male, Cable Mount, 16A, IP20

Cable Mount Plugs and Sockets

Available in 2, 3, 4 & 5 pole versions
Screw connection
Include strain relief for cables
Integrated locking device

Approvals

Din VDE 0606 Din VDE 0627 (5 pole)

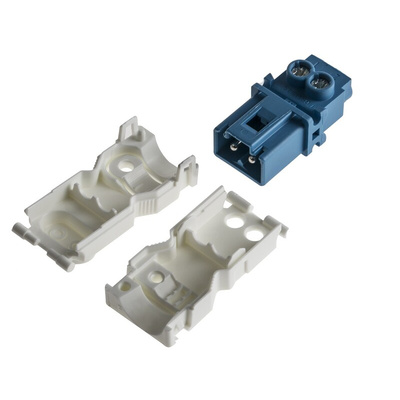

Male Cable Connector Blue

From the Gesis Series, this 2-pole male connector is ideal for a number of general electrical installations. Due to the compact size, it is perfect for use where space is limited.

Features and Benefits

• Male connector with strain relief
• 2-pole
• Screw connection
• Blue in colour
• White polyamide housing
• Self-locking (unlockable by a tool)
• 50 V / 16 A

GST15i Mini Compact Connector System

A pluggable electrical installation system designed for confined spaces. Ideal for general electrical wiring distribution and lighting applications. 2, 3, 4 or 5 pole schemes can be implemented using just a small number of components. The system complements the existing, industry standard, ST and GST connector systems but is physically smaller whilst maintaining the 250V 16A rating.

Rated Voltage 250-400V ac
Rated Current 16A
Instalation material Thermoplastic (halogen free)
Contact material Brass (plated)
Operation temperature 100°C
Connection cycles 50 to 100 (at 16A resistive load)
IP20

Approvals

Din VDE 0606 Din VDE 0627 (5 pole)

GST15i2 Datasheet
