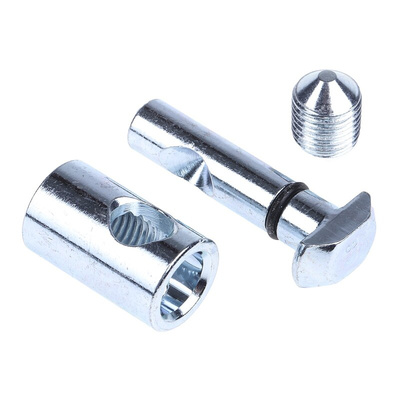

3842 535 458, Bosch Rexroth D17 Quick Connector Connecting Component, Strut Profile 40 mm, 45 mm, 50 mm, 60 mm, Groove Size 10mm

Quick, Single Bolt Type, Strut Connector

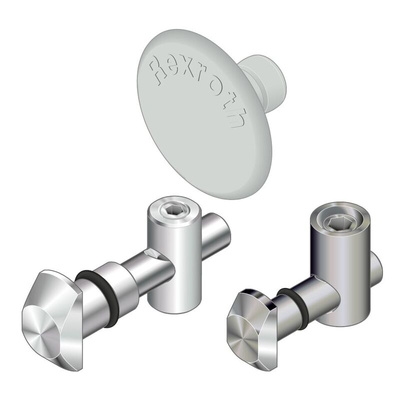

Quick connectors for creating right angles with 8mm and 10mm profiles. Easy and fast to connect, these connectors are ideal for the creation of temporary structures.

Fast assembly
Excellent accessibility for tools during assembly
Available as horizontal / vertical
Machining Required : 11mm barrel, 11mm through-hole
17mm barrel, 17mm through-hole

Bosch Rexroth Connecting Component, Quick Connector Type, 10mm Groove Size - MGE Series - 3842 535 458

Link struts in a jiffy with this simple-to-use Bosch Rexroth connecting component. You only have to drill one 17mm hole in your chosen profile, so you can count on minimal finishing when putting builds together. The quick connector lug swivels smoothly into a compatible 10mm groove, which helps you achieve fast installation in the field. This unit's also a handy choice if you're dealing with temporary structures, as its threaded mechanism makes adjustments or deconstruction the work of moments.

Features & Benefits

• Galvanised steel construction tolerates feed forces up to 4000N, so practical for heavy loads
• Suitable for use with 40, 45, 50 and 60mm strut profiles for versatility
• ESD protected to minimise static discharge

Applications

• Warehouses and distribution centres
• Breweries
• Commercial display structures

Can this component withstand momentary forces?

Yes, you can trust it to handle momentary forces as it tolerates 140Nm when assembled.

Alternative for the Bosch parts

401-393 → 276-8181

Datasheet

0401393_Catalogue
