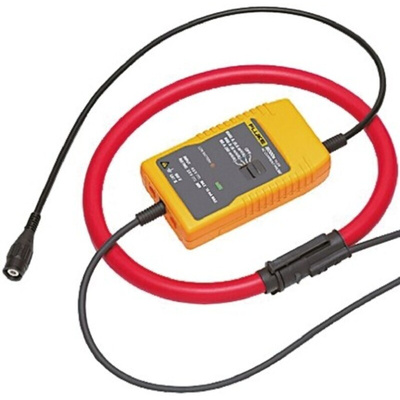

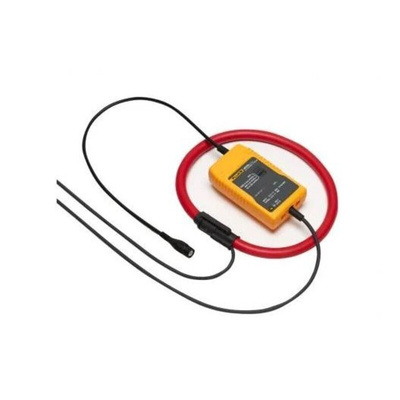

I6000S FLEX-24, Fluke i6000S FLEX Current Probe, AC, Rogowski Coil Adapter, 6kA ac AC Max

i6000s Flex a.c. Current Probe

The Probes can be used to measure ac current up to 6000 A. The flexible measuring head allows current measurements on conductors that are hard to reach or inaccessible using typical clamp-on current probes.

Standards

EN 61010-1: 2001
EN 61010-2-032: 2002
EN 61010-031: 2002
600 V rms Category III, Pollution Degree 2.
EN 61326 : 1998 +A1, A2, & A3

FLUKE Current Probe, Rogowski Measuring Principle, 100 kOhm Minimum Load Impedance - I6000S FLEX-24

Keep tabs on current levels in your circuits and appliances with this probe from FLUKE. It works together with an oscilloscope to sense charges passing through conductors then convert the measured value to a readable voltage signal. Because this multitasker can monitor between 60 and 6000A of AC current, you'll find it suitable for simple as well as heavy-duty applications. Thanks to a ±1% accuracy, you can count on this probe to give you pinpoint readings every time.

• 2m cable length for comfortable connection with other equipment
• Broad operating temperature range between -20°C and +90°C for use in challenging conditions
• Powered by two MN 1500 LR6 alkaline batteries, eliminating the need for a wired connection to a mains energy source
• Integrated low battery indicator lets you know when it's time to replace them

Applications

• Measurement and instrumentation equipment
• HVAC equipment
• Robotics and automation systems

Can I use this probe in tight spots?

Yes, this unit's flexible lead and slim body enables you to get it into cramped, hard-to-reach work areas.
