I6000S FLEX-36, Fluke i6000S FLEX Current Probe, AC, Rogowski Coil Adapter, 6kA ac AC Max

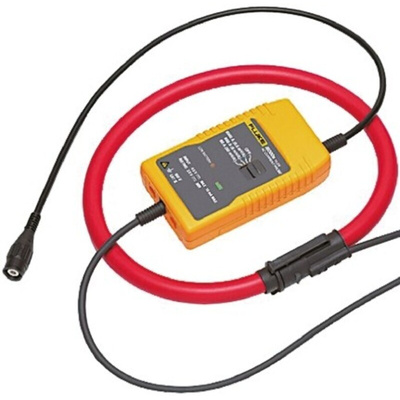

i6000s Flex a.c. Current Probe

The Probes can be used to measure ac current up to 6000 A. The flexible measuring head allows current measurements on conductors that are hard to reach or inaccessible using typical clamp-on current probes.

Standards

EN 61010-1: 2001
EN 61010-2-032: 2002
EN 61010-031: 2002
600 V rms Category III, Pollution Degree 2.
EN 61326 : 1998 +A1, A2, & A3

Fluke Current Probe & Clamp

The Fluke flex AC current probe is a 36in state of the art device used to measure 6000A. Probes can be used with oscilloscopes, digital multimeters, recorders, or data loggers. The flexible measuring head allows current measurements on conductors that are hard to reach or inaccessible using typical clamp-on current probes. The probes provide a low-voltage (3VAC) output that is proportional to the current being measured.

Features and Benefits

Flexible
Accuracy of ±1 %
Lightweight
Head cable length is 915mm (double insulated)
Head bend radius is 38.1mm
Frequency range is from 10Hz to 50kHz (-3 dB)

Certifications

EN 61010-1: 2001
EN 61010-2-032: 2002
EN 61010-031: 2002
600V rms category III, pollution degree 2
EN 61326 : 1998 +A1, A2, and A3
CAT III 600V

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

i6000s Flex AC Current Probe Instruction Sheet

Fluke i6000S Flex AC Current Probe - Datasheet
