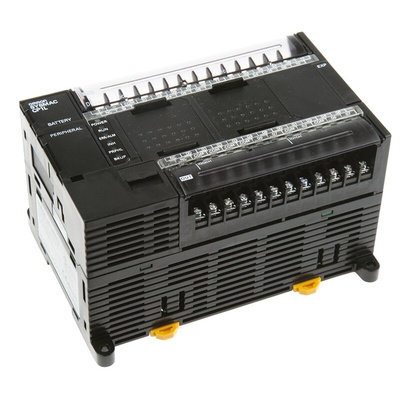

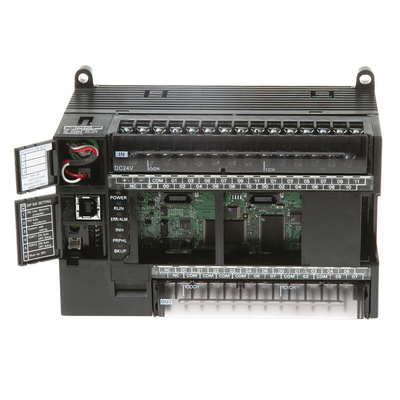

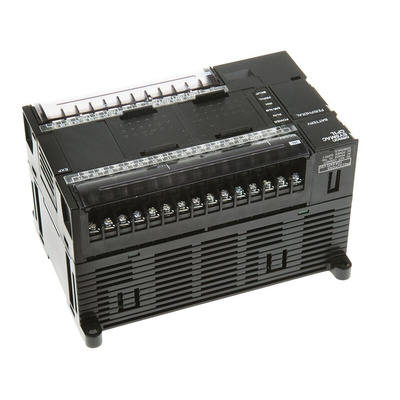

CP1L-M40DR-D, Omron CP1L Series PLC CPU for Use with SYSMAC CP1L Series, Relay Output, 24 (DC)-Input, DC Input, ПЛК

Omron Programmable Logic Controller

The Omron CP1L is a programmable logic controller(PLC) with 16 relay output and USB networking computer interface. It has 10000 steps program capacity and 40 built-in I/O points. This PLC is for use with SYSMAC CP1L series. The series offers the compactness of a micro-PLC with the capability of a modular PLC. This range is not only compact, but also scalable, and it has faster processing speed than other controllers. This product has many advantages as compared to its earlier generation of PLCs like six in-built interrupts, high-speed counters, faster processing of instructions that speed up the entire system and structural text language support that makes mathematical operations much easier. It also has high precision positioning control suitable for advanced robotics.
Note
:
Omron CPM1, CPM1A, CPM2A, CPM2C Expansion Modules may be used with the CP1L CPU range.

Features and Benefits

Built-in USB port
Required DC power supply
Compatible with all the other devices in the Omron PLC line-up
Four high-speed encoder inputs and two high-speed pulse outputs
Memory size is 32k words
Expandable up to three modules
Instruction set compatible with CP1H, CJ1 and CS1 series PLCs
Operating temperature ranges between 0°C and 55°C
Optional RS232C and RS-422A/485 serial ports
Motion functionality

Applications

Industrial automation
Robotics
Automobiles industry

Certifications

UC1 certified
N certified
L certified
CE
cULus certified
Lloyd certified
NK certified

CP1L Series CPU Unit Getting Started Guide

RS OUR OFFER - OMRON PLC CP1L

Datasheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
