RS PRO Toggle Switch, PCB Mount, On-Off-On, SPDT, Through Hole Terminal, Тумблер

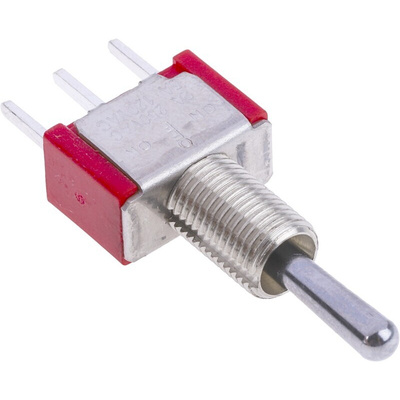

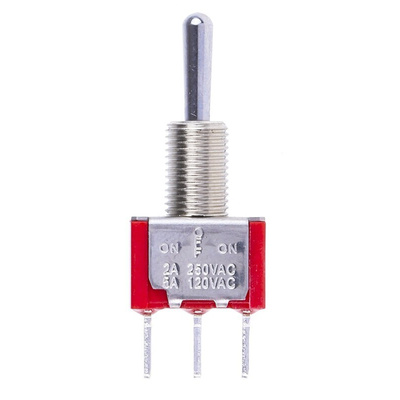

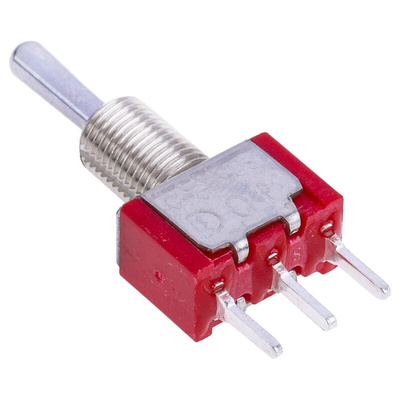

RS PRO SPDT Toggle Switch, On-Off-On, PCB

Choose this miniature SPDT (Single Pole Double Throw) toggle switch from RS PRO to control two circuits using one actuator. It's typically used in industrial machinery and assembly lines to power operations and lighting indicators.
This switch features a chrome-plated brass actuator that's sturdy and resistant to corrosion. It's easy to operate and locks into position to prevent accidental switching. Silver contacts ensure quick and reliable connections, while through-hole terminals make it easy to secure the switch onto a PCB (Printed Circuit Board). Plus, epoxy seals ensure there's no breakage due to contamination while you're soldering.
The unit is rigorously tested for quality and durability. A mechanical life of 40,000 make-and-break cycles means you can be confident of long-lasting usage. A wide operating temperature range of -30°C to +85°C makes this switch suitable for use in harsh industrial settings.

Features and Benefits

• Actuator length of 10.41 mm
• Brass actuator material
• SPDT contact configuration
• Contact current rating of 5 A at 250 V AC
• Copper alloy contact material
• Contact resistance of 10 mΩ
• Operating temperature range of -30°C to +85°C
• Mechanical life of 40000 cycles
• PCB mounting type
• Meets lead-free standards and is RoHS (Restriction of Hazardous Substances) compliant
• On-off-on switch operation
• Through-hole terminal type

Dimensional Drawing

RS PRO Datasheet
