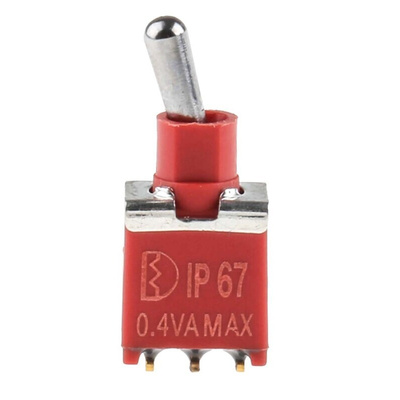

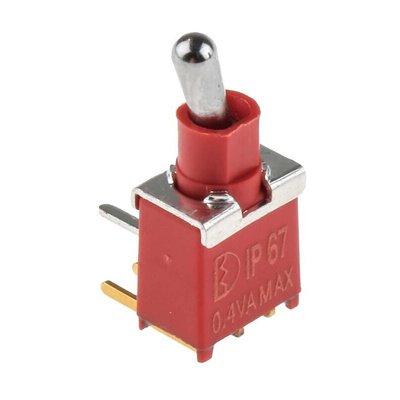

RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal, Тумблер

RS PRO SPDT Toggle Switch, Latching, IP67, PCB Mounting

This SPDT (Single Pole Double Throw) switch allows a single current to control two electrical circuits. It's typically used in industrial machinery, assembly lines and vehicle panels to toggle between different modes of operation.
The switch features copper-alloy contacts with gold plating to ensure reliable connections. Plus, the contacts are resistant to damage from corrosion and rust. Epoxy-sealed through-hole terminals prevent breakage during soldering, so you securely mount it onto your PCB (Printed Circuit Board).
An O-ring seal on the brass actuator makes this switch waterproof and dust-tight. It has an Ingress Protection (IP) rating of IP67, which means the unit can be dropped into a body of water up to a metre deep for half an hour. This makes the switch especially suited for use in demanding applications like marine equipment and boating panels.

Features and Benefits

• Actuator length of 6.1 mm
• Brass actuator material
• SPDT contact configuration
• Contact current rating of 400 mA (milliampere) at 20 V (volts) DC
• Gold contact material
• Contact resistance of 20 mΩ
• Ingress Protection (IP) rating of IP67
• Operating temperature range of -30°C to +85°C
• Mechanical life of 30000 cycles
• PCB mounting type
• RoHS (Restriction of Hazardous Substances) and lead-free standards met
• Latching switch operation
• Through-hole terminal type
