RS PRO Toggle Switch, PCB Mount, On-Off-On, DPDT, Through Hole Terminal, 120 ac/dc, 28V ac/dc, Тумблер

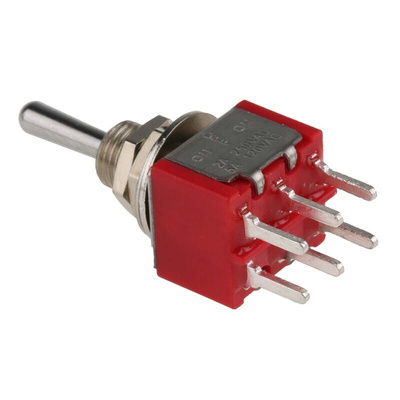

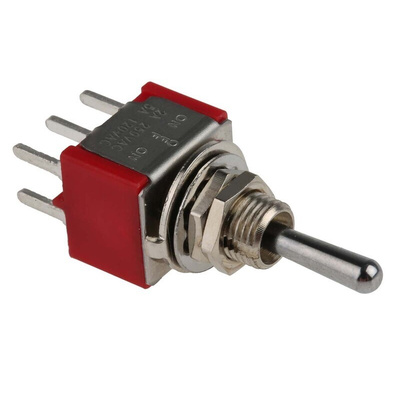

RS PRO DPDT Toggle Switch, On-Off-On, PCB

Use this small DPDT (Double Pole Double Throw) toggle switch from RS PRO to control two circuits with two actuators. It's widely used in industrial machinery and production lines to power lighting indicators and operations.


This switch is easy to use and locks into place to prevent accidental switching. Its chromium-plated brass actuator is durable and corrosion-resistant. Through-hole terminals make it easy to mount the switch on a PCB (printed circuit board). It also has silver contacts for fast and reliable connections. To prevent breakage, epoxy seals reduce the risk of contamination while soldering.


As part of the RS PRO range, this product has been tested for quality and reliability. It offers a long mechanical life of 40,000 make-and-break cycles, so it won't need frequent replacement. Thanks to its wide operating temperature range of -30°C to +85°C, this switch is ideal for use in harsh industrial environments.

Features and Benefits

• Actuator length of 10.41 mm


• Chromium-plated brass actuator material


• DPDT contact configuration


• Contact current rating of 5 A at 250 V AC


• Silver contact material


• Contact resistance of 10 mΩ


• Operating temperature range of -30ºC to +85ºC


• Mechanical life of 40000 cycles


• PCB mounting type


• Meets lead-free standards and is RoHS (Restriction of Hazardous Substances) compliant


• On-off-on switch operation


• Through-hole terminal type

Applications
