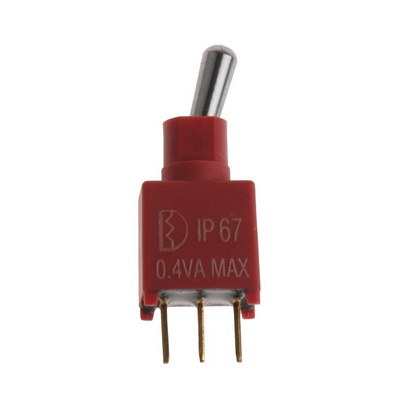

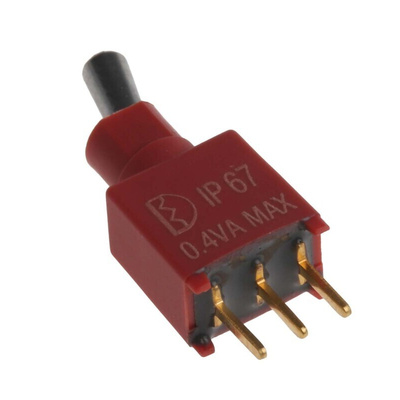

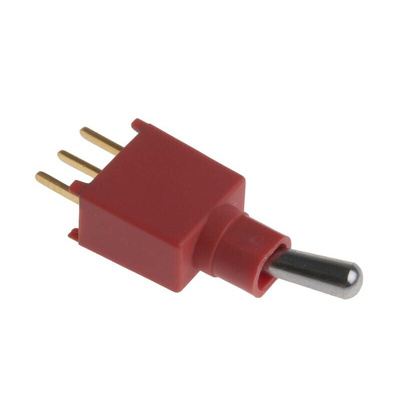

RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal, Тумблер

RS PRO SPDT Toggle Switch, Latching, IP67, PCB Mounting

To control two circuits using a single device, turn to this SPDT (Single Pole Double Throw) switch from RS PRO. It's used in industrial machinery, test equipment and telecom devices that offer more than one mode of operation. It's also used to control lighting indicators.
This toggle switch features gold-plated copper contacts that are reliable and long-lasting. The contacts are also resistant to corrosion. An O-ring seal is fitted with the brass actuator so the unit is dust-tight. The switch has an Ingress Protection (IP) rating of IP67, so it's waterproof. This means it can withstand immersion in water for half an hour up to a depth of one metre.
The unit is tested for quality and durability. A wide operating temperature range of -30°C to +85°C means its suitable for use in harsh industrial settings.

Features and Benefits

• Actuator length of 6.1 mm
• Brass actuator material
• SPDT contact configuration
• Contact current rating of 400 mA (milliamps) at 20 V (volts) DC
• Gold contact material
• Contact resistance of 20 mΩ
• Ingress Protection (IP) rating of IP67
• Operating temperature range of -30°C to +85°C
• Mechanical life of 30000 cycles
• PCB (printed circuit board) mounting type
• RoHS (Restriction of Hazardous Substances) and lead-free standards met
• Latching switch operation
• Through-hole terminal type
