CS083A, CAMDENBOSS 380V ac Relay Socket, Контактная колодка

10A Industrial Relay

Protected by a clear polycarbonate cover
DIN Rail or Surface Mounting
Contact Material: Ag + Au Flashed
Contact Rating is 10A
Maximum switching voltage 250 Vac, 30 Vdc
Mechanical Life of 10⁷ Operations (min)
Electrical Life of 10⁵ Operations (min)
Maximum temperature at rated coil voltage 65°C
Dimensions: H 53mm, W 36mm, D 36mm

CAMDENBOSS Relay Socket

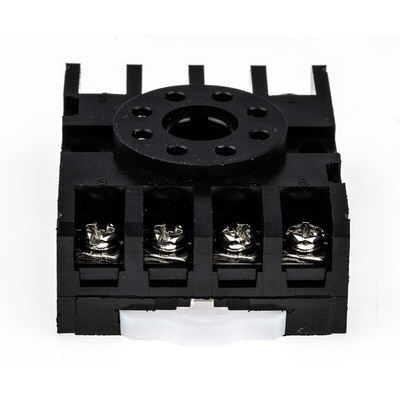

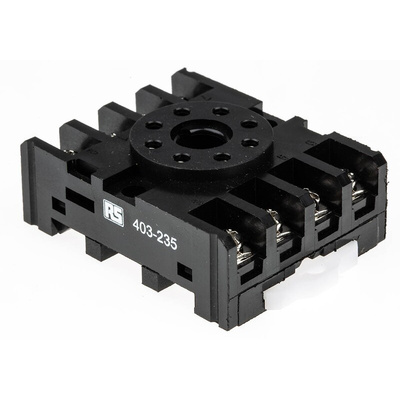

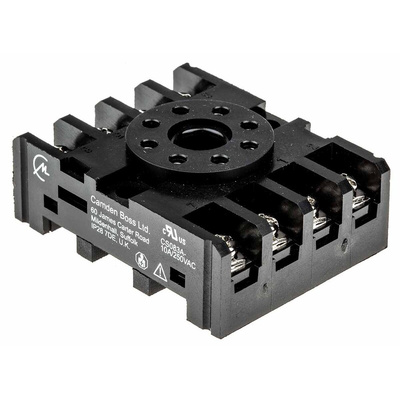

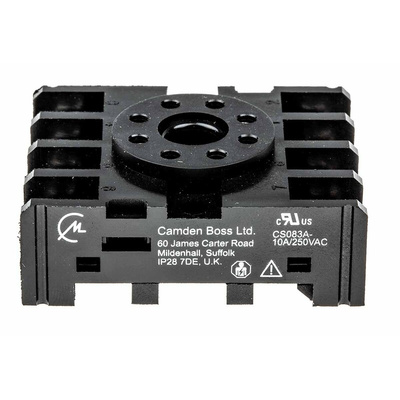

The CAMDENBOSS 8-pin compact relay socket has rising saddle terminals for ease of wire insertion. It accepts fork, ferrule and ring terminals. The socket has tubular contacts for reliability and comes with a G rail adapter and clip accessory. It has a current rating of 10A and voltage rating of 250VAC.

Features and Benefits

• Dielectric strength >2Kv
• Phosphor bronze, tin-plated <3μm contacts
• DIN rail (EN50022) or chassis screw mounting
• Screw driver release DIN clip
• Insulation resistance is 1000MΩ

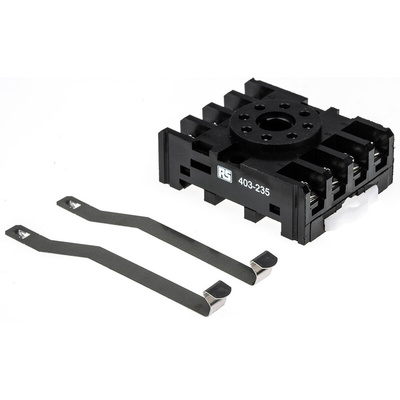

• Relay retaining clip accessory
• Operating temperature ranges between -25°C and 55°C
• Terminal screw torque is 0.7N/M max

Certifications

• IP20 rated
• UL approved
• CSA certified

Approvals

UL recognised component CSA approval

CSA LR31928-256

Compact 8-11 Pin Commercial Relay Bases Data Sheet
