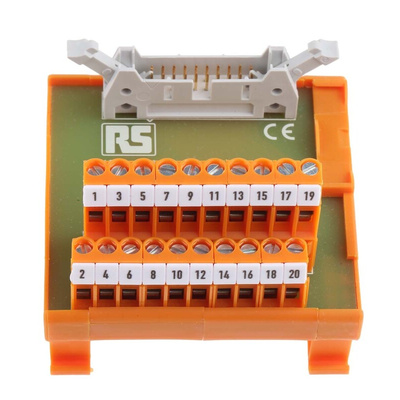

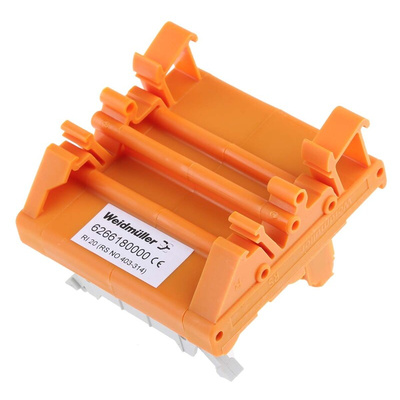

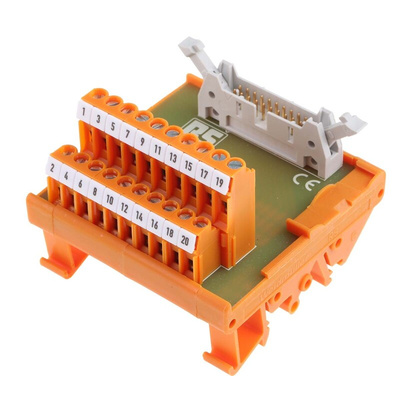

RS PRO 20-Contact Interface Module, IDC Connector, DIN Rail Mount, 1A, Модуль

RS PRO, 20 Pole IDC Connector Interface Module, DIN Rail Mounting

This RS PRO interface module connects electronic devices to electrical control systems to perform jobs like signal transmission and distribution functions. For ease of installation, the module can be mounted on a DIN rail. It's also simple to use as the "plug and play" interface allows you to easily manipulate and direct your electronic devices.
The screw termination creates a secure connection, keeping your devices firmly linked to the module. Thanks to the module's polyamide (PA) construction, it's highly durable and offers good thermal resistance for use at high temperatures. The gold-plated contacts ensure a good level of electrical conductivity as well as rust and corrosion resistance, giving you a reliable and long-lasting connection.
This interface module's compact dimensions make it a good choice for use in areas where space is limited. You'll commonly find this type of unit used in factories and manufacturing plants.

Features and Benefits

• Cable cross-sectional area (CSA) of 4 mm²
• IDC (insulation-displacement contact) connector type
• Current rating of 1 A
• Dimensions of 70 (length) x 70 (width) x 62 mm (depth)
• Maximum operating temperature of +50°C
• Minimum operating temperature of -20°C
• DIN rail mounting type
• 20 contacts
• Voltage rating of 50 V
