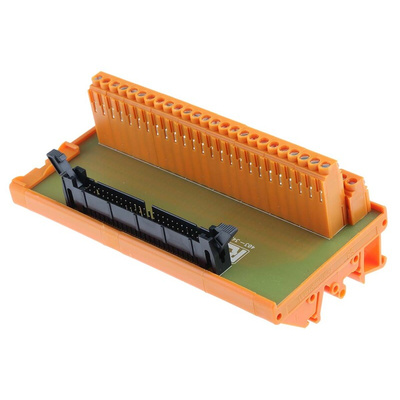

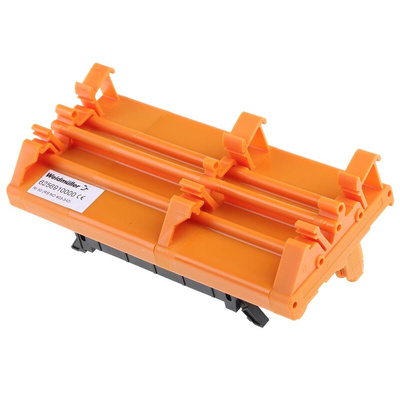

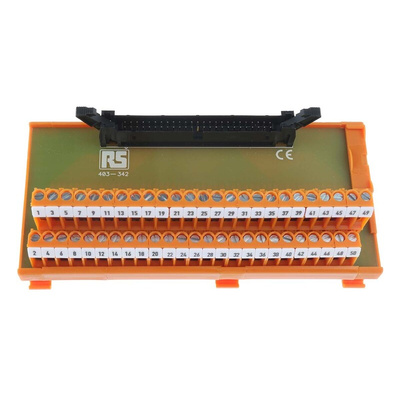

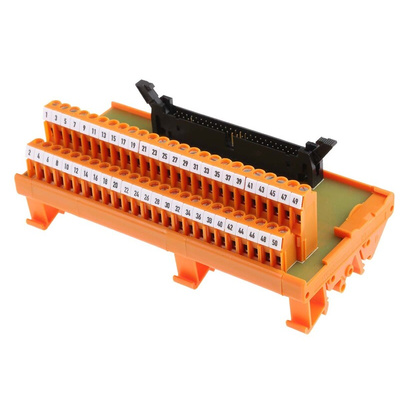

RS PRO 50-Contact Interface Module, IDC Connector, DIN Rail Mount, 1A, Модуль

RS PRO, 50 Pole IDC Connector Interface Module, DIN Rail Mount

Connect your electronic devices to electrical control systems with ease using this interface module connector from RS PRO. It's designed for jobs like distribution functions and signal transmissions. It can be mounted on a DIN rail for quick and easy installation. It's also straightforward to use thanks to its "plug and play" interface that allows you to direct and manipulate your electronic devices.


This component creates secure connections as the screw termination method ensures your devices are firmly linked to modules. As it's constructed from polyamide (PA), it's robust and offers strong thermal resistance. This means it's suitable for use in environments with high temperatures. The contacts are gold-plated for a high level of electrical conductivity. They're also resistant to corrosion, ensuring a reliable and long-lasting connection.


As the interface module is compact, it's ideal for applications where you need to save space. This type of unit is commonly used in factories and manufacturing plants.

Features and Benefits

• Cable cross-sectional area (CSA) of 4 mm²


• IDC (insulation-displacement contact) connector type


• Current rating of 1 A


• Dimensions of 145 (length) x 70 (width) x 62 mm (depth)


• Operating temperature range of -20°C to +50°C


• DIN rail mounting type


• 50 contacts


• Voltage rating of 50 V
