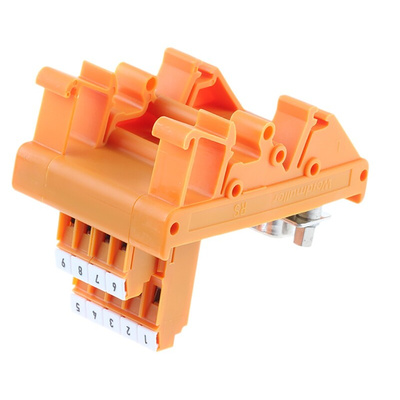

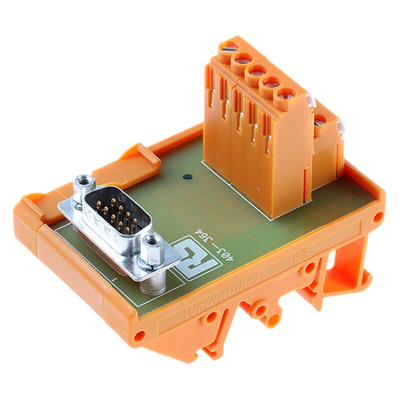

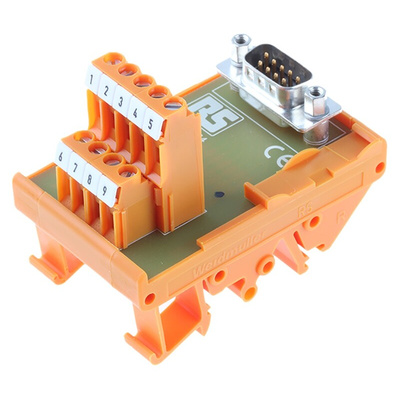

RS PRO 9-Contact Male Interface Module, D-sub Connector, DIN Rail Mount, 1A, Модуль

RS PRO, 9 Pole D-Sub Connector, Male Interface Module, DIN Rail Mounting

Looking for an easy way to connect your electronic appliances to your electrical control systems? Choose this male interface module from RS PRO. It mounts onto a DIN rail for ease of installation and features an intuitive plug-and-play interface that gives you direct control over your devices.
For a strong and secure connection, the screw terminals tightly fix the wires into place to ensure an electrically robust attachment point. It's made of polyamide (PA), making it robust and highly resistant to wear. The contacts are gold-plated to help them resist rust, mechanical damage and corrosion, so you can safely use this module in demanding applications.
This D-sub connector provides protection against electromagnetic interference for an uninterrupted connection. It's suitable for use in tight spaces thanks to its compact dimensions.

Features and Benefits

• Cable cross-sectional area (CSA) of 4 mm²
• D-sub connector type
• Current rating of 1 A
• Depth of 62 mm
• Dimensions of 45 (length) x 70 (width) x 62 mm (depth)
• Male gender
• Maximum operating temperature of +50°C
• Minimum operating temperature of -20°C
• DIN rail mounting type
• Nine contacts
• Voltage rating of 50 V
