RS PRO 9-Contact Female Interface Module, D-sub Connector, DIN Rail Mount, 1A, Модуль

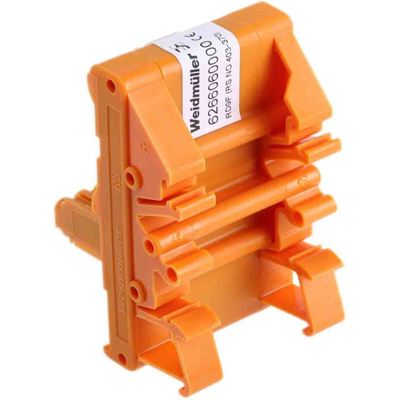

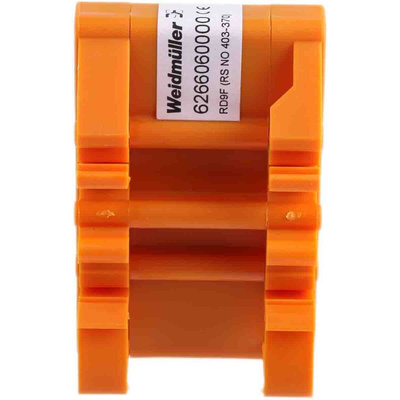

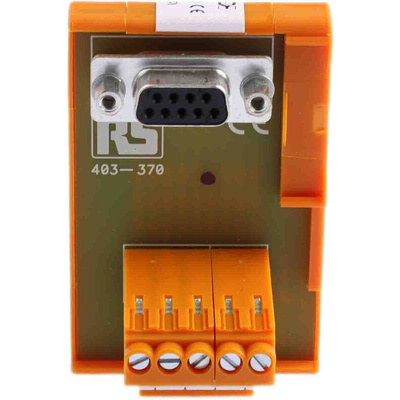

RS PRO 9 Pole D-Sub Connector, Female Interface Module, DIN Rail Mount

Link your electronic appliances to your electrical control systems with this RS PRO female interface module. It includes a straightforward plug-and-play interface that provides direct control over your devices. It also mounts onto a DIN rail for ease of installation.


The screw terminals hold the wires firmly in place to produce an electrically robust attachment point, ensuring a strong and secure connection. It's constructed of polyamide (PA), which makes it tough and wear-resistant. As the contacts are gold-plated, they're resistant to rust, mechanical damage and corrosion, allowing you to use this module safely in demanding applications.


For an uninterrupted connection, this D-sub connector protects against electromagnetic interference. Its small dimensions make it ideal for use in tight spaces.

Features and Benefits

• Cable cross-sectional area (CSA) of 4 mm²


• D-sub connector type


• Current rating of 1 A


• Depth of 62 mm


• Dimensions of 45 (length) x 70 (width) x 62 mm (depth)


• Female gender


• Maximum operating temperature of +50°C


• Minimum operating temperature of -20°C


• DIN rail mounting type


• Nine contacts


• Voltage rating of 50 V

Datasheet
